Agricultural Machinery Welding: Fume Extraction Tower

In the world of heavy equipment manufacturing, few environments are as challenging for air quality management as a dedicated agricultural machinery fabrication hall. When welding massive components like main tractor frames and combine harvester chassis, manufacturers often find themselves at a crossroads. Traditional extraction solutions, designed for smaller parts, frequently fail to meet the scale of the task, leaving both worker health and international safety compliance in jeopardy.

The Scenario: Heavy-Duty Welding of Tractor and Harvester Chassis

The foundation of any heavy-duty agricultural machine is its chassis. Whether it is a rigid tractor frame or a complex combine harvester base, these structures must withstand immense structural loads.

• Materials & Process: To achieve the required strength, fabricators typically use thick-gauge steel plates and large, hollow sections. This demands high-current, high-duty-cycle welding processes, most commonly Gas Metal Arc Welding (GMAW/MIG) or Flux-Cored Arc Welding (FCAW).

• Welding Intensity: These are not quick "tack-and-go" welds. They involve long, continuous, multi-pass seams that burn for extended periods.

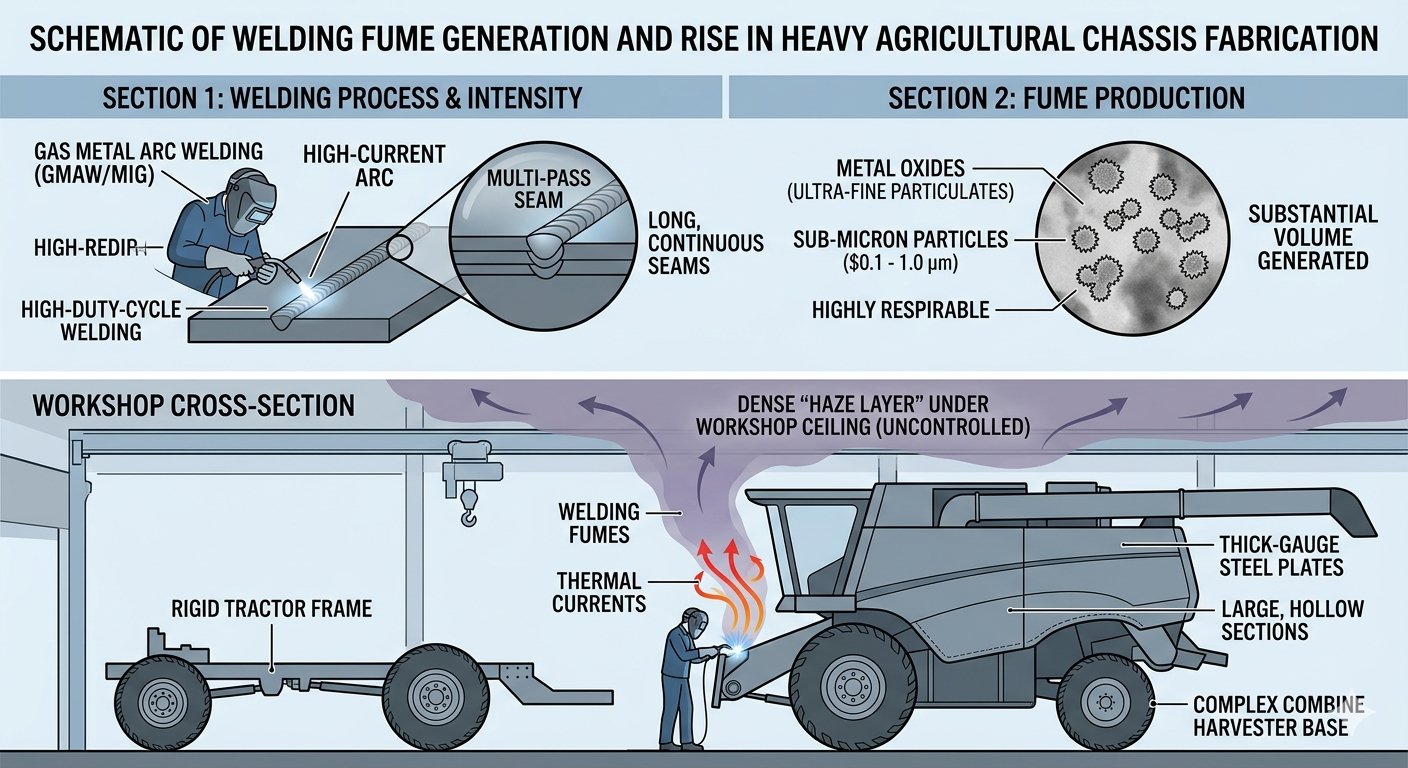

• Fume Production: This intense activity generates a substantial volume of ultra-fine particulate matter. These sub-micron particles, composed of metal oxides, are highly respirable and, unless controlled, rapidly rise on thermal currents to form a dense "haze layer" under the workshop ceiling.

While compliance pressure increases, the physical nature of agricultural chassis makes localized extraction exceptionally difficult:

• The Problem of Scale: An extraction arm with a limited radius cannot cover the entirety of a 10-meter harvester chassis without constant manual readjustment. This forces welders to choose between productivity and safety.

• Overhead Obstructions: These massive frames require frequent overhead crane lifting (cranage) for repositioning. Overhead-mounted hoods or flexible ducting networks often create physical conflicts with crane paths, making them impractical.

• Fluid Workstations: In modern flexible manufacturing, welding stations may shift to accommodate different models. Fixed, rigid pipework lacks the adaptability needed for these evolving layouts.




The Solution: Whole-Shop Ambient Filtration via Extraction Towers

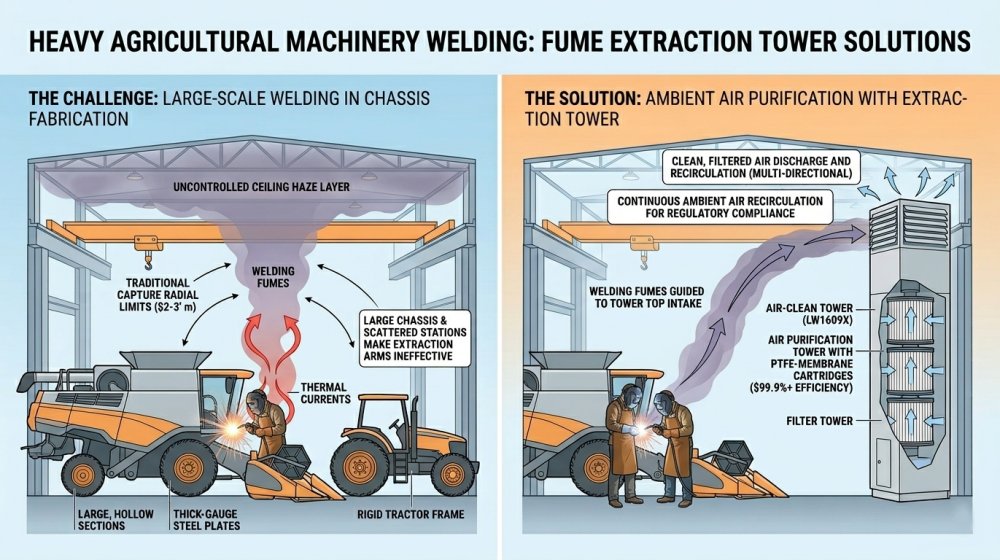

When the physical limitations of a component prevent local capture, the most effective solution is a shift toward ambient air filtration. This is the exact operating paradigm of the Industrial Extraction Tower.

Rather than attempting to "chase" every individual weld seam, the Extraction Tower functions as a high-capacity air purification hub for the entire workshop.

• Total Overhead Clearance for Cranes: Extraction Towers are floor-mounted, self-contained units. This ductless design entirely eliminates the conflict between crane operations and the ventilation system. The ceiling space remains clear, and heavy components like tractor frames can be freely lifted and moved without risking equipment damage.

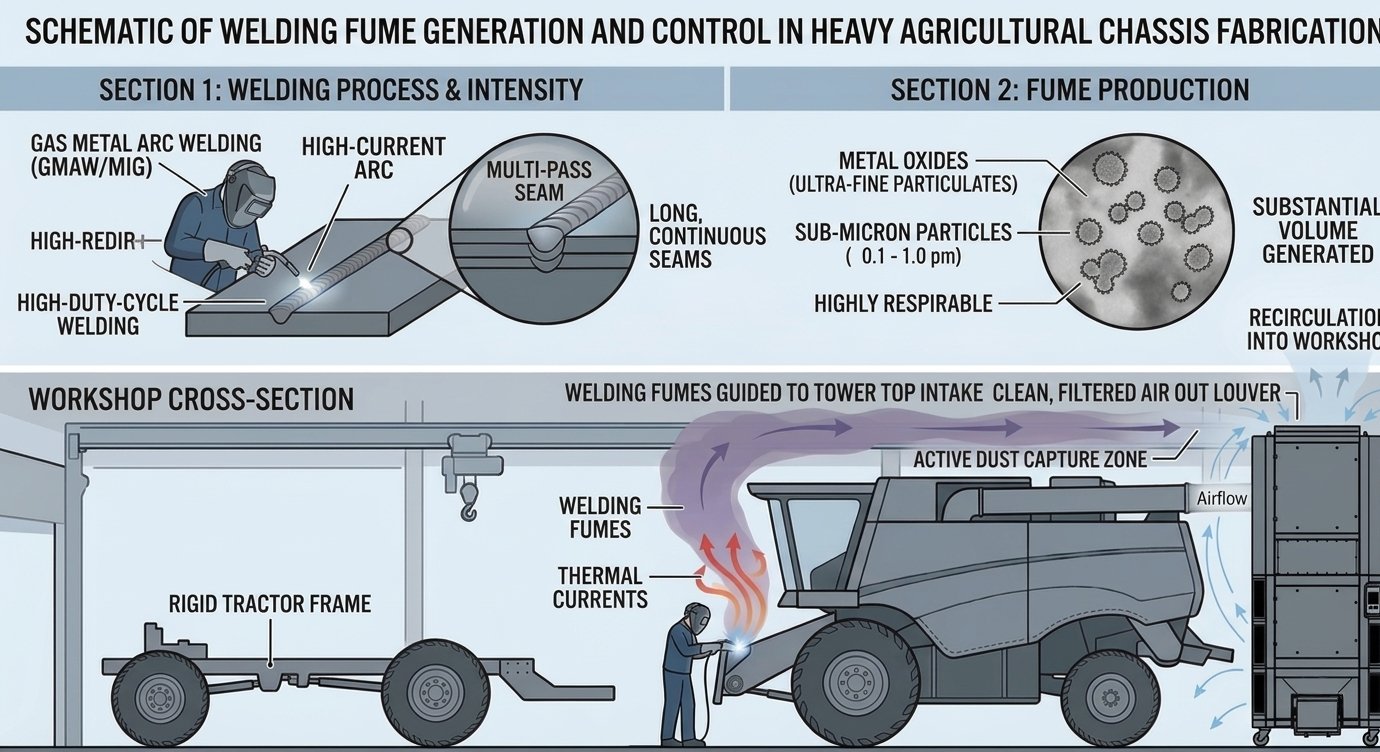

• Large-Volume Ambient Coverage: Towers manage air quality by establishing controlled airflow patterns across a wide area. Utilizing high-efficiency filtration media (such as PTFE-membrane cartridges with 99.9% efficiency), the unit draws in contaminated air from the upper layers of the shop and redistributes clean, filtered air back into the working zone. This creates a continuous purification cycle that keeps background fume concentrations well within global safety limits.

• Adaptability to Flexible Manufacturing: Because they are independent of a fixed ductwork infrastructure, Extraction Towers are inherently "modular." As production demands change and welding stations are reorganized, the filtration towers can be repositioned with minimal downtime. This future-proofs the investment against changing product lines.

Summary

In heavy agricultural machinery manufacturing, effective fume control requires a strategic shift in perspective. By addressing air quality on an ambient level with a fume extraction tower, manufacturers can achieve high-efficiency purification without sacrificing vital operational space.
