Fume Filter Extraction Tower in Metal Welding

Introduction & Background Problem

In large-scale metal fabrication workshops, heavy welding operations—such as MIG/MAG and flux-cored arc welding (FCAW)—generate vast volumes of fine hazardous fumes (including hexavalent chromium, manganese, and iron oxides).

For facilities working on massive steel structures or using overhead traveling cranes, traditional source capture equipment (like suction arms or overhead hood ducting) often presents critical operational challenges:

• Crane Blockage: Overhead ductwork obstructs material handling and crane movement.

• Limited Reach: Extraction arms cannot comfortably cover extra-long workpieces (15m–30m+).

• Flexibility Issues: Moving welding positions continuously leaves localized capture systems ineffective.

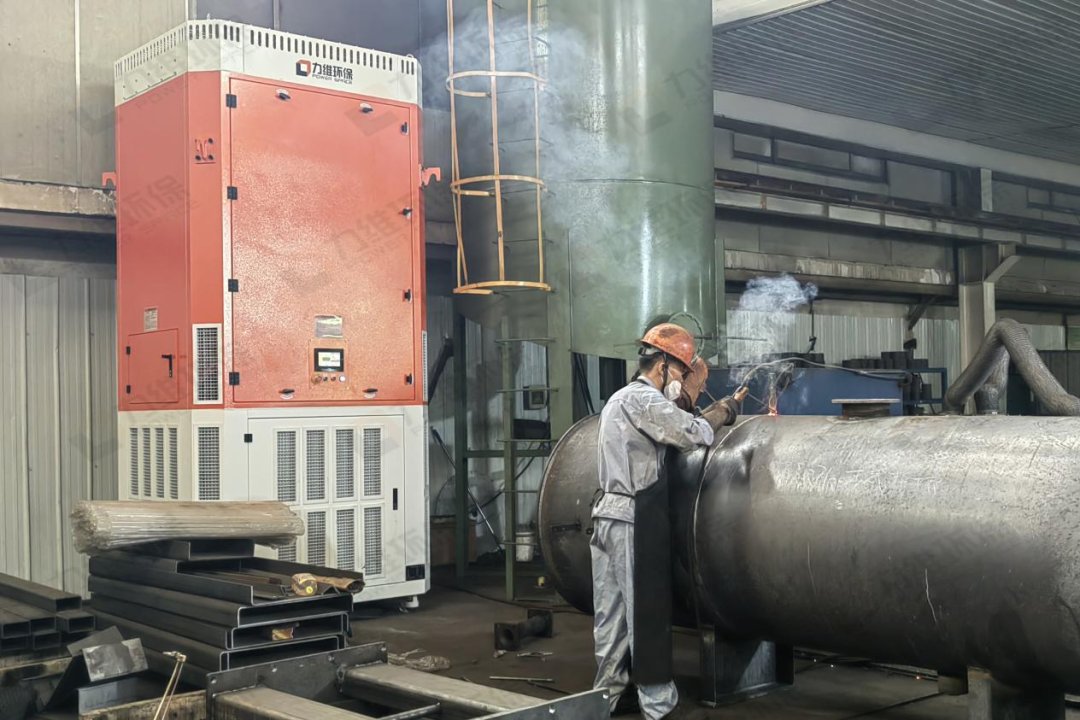

To solve this, the Ductless Fume Filter Extraction Tower offers a free-standing, 360-degree ambient air filtration system engineered specifically for heavy metal welding plants.

Project Background & Workplace Challenges

The Solution & Hardware Configuration

Instead of localized collection, the Fume Extraction Tower utilizes a Displacement Ventilation Strategy (low-velocity clean air discharge at ground level, high-level thermal plume capture at top).

Key System Features & Specifications:

• PTFE-Coated Cartridge Filters: High-efficiency filtration media capturing 99.9% of airborne particulate matter down to 0.3 microns.

• Omnidirectional Air Intake Louvers: Top-mounted intake vents capture warm welding smoke as it naturally ascends due to thermal buoyancy.

• Automated Pulse-Jet Cleaning: Integrated differential-pressure PLC control automatically fires compressed air pulses to clean filter cartridges without shutting down operations.

• Plug-and-Play Footprint: Free-standing, ductless unit requiring zero ceiling suspension—protecting overhead crane pathways.

How It Works: Step-by-Step Filtration Process

1.Thermal Intake at Ceiling Height

Warm welding fumes rise naturally due to heat. The upper intake section of the tower draws in polluted air at ceiling height before it spreads laterally across the factory floor.

2.Sub-Micron Cartridge Filtration

The contaminated air passes through PTFE membrane filter cartridges. Hazardous metal particulates (manganese, chromium, zinc fumes) are trapped on the outer filter media surface.

3.Reverse Pulse-Jet Cleaning

An intelligent differential pressure sensor detects dust buildup on the filters and triggers localized compressed air pulses, knocking the caked dust directly into a sealed collector bin below.

4.Low-Velocity Clean Air Discharge

Filtered, breathable air is gently released from the bottom vents at ground level. This forms a draft-free "clean air lake" in the primary worker breathing zone.

Measurable Results & Practical Benefits

Workplace Compliance & Energy Savings: By recirculating warm indoor air back into the workshop (after 99.9% filtration), facilities cut heating and cooling energy loss by up to 60% compared to traditional roof exhaust fans.

• OSHA & PEL Compliance: Keeps indoor air heavy-metal concentrations well below standard Permissible Exposure Limits (PEL).

• Zero Crane Obstruction: Completely eliminates overhead ducting networks.

• Flexible Layout: Easily relocated via forklift if workshop layouts or production lines change in the future.

FAQ

Q1: How many Fume Filter Extraction Towers do I need for my welding workshop?

Answer: The required number of towers depends on your total workshop volume, the intensity of welding operations, and the required Air Exchange Rate (typically 4 to 8 air changes per hour for heavy welding). For instance, a single high-capacity tower generally covers an effective breathing zone radius of 15 to 25 meters. Contact our engineering team for a customized airflow calculation based on your facility layout.

Q2: What is the maintenance frequency and lifespan of the PTFE filter cartridges?

Answer: Under normal heavy industrial welding conditions with automated reverse pulse-jet cleaning active, our high-efficiency PTFE-coated membrane filter cartridges typically last 12 to 24 months. Daily filter maintenance is fully automated by the PLC differential pressure system, requiring operators only to empty the sealed dust collection bin periodically.

Q3: Does the extraction tower require external ductwork or outdoor venting?

Answer: No. The Fume Filter Extraction Tower is a completely ductless, self-contained recirculating system. It draws contaminated air from the upper space of the factory, filters out 99.9% of metal fumes, and releases clean air back into the breathing zone at ground level. This eliminates expensive roof duct installation and prevents conditioned air (heating or cooling) from being exhausted outdoors.

Q4: Can the extraction tower handle oily or sticky welding fumes (e.g., anti-spatter sprays or oiled sheet metal)?

Answer: If your welding process involves significant anti-spatter agents or oily metal sheet coatings, we recommend adding a pre-coating powder dosing system or specialized oil-proof filter media. This prevents liquid oil mists from blinding the PTFE filter pores, ensuring long-term filtration efficiency and preventing premature clogging.
