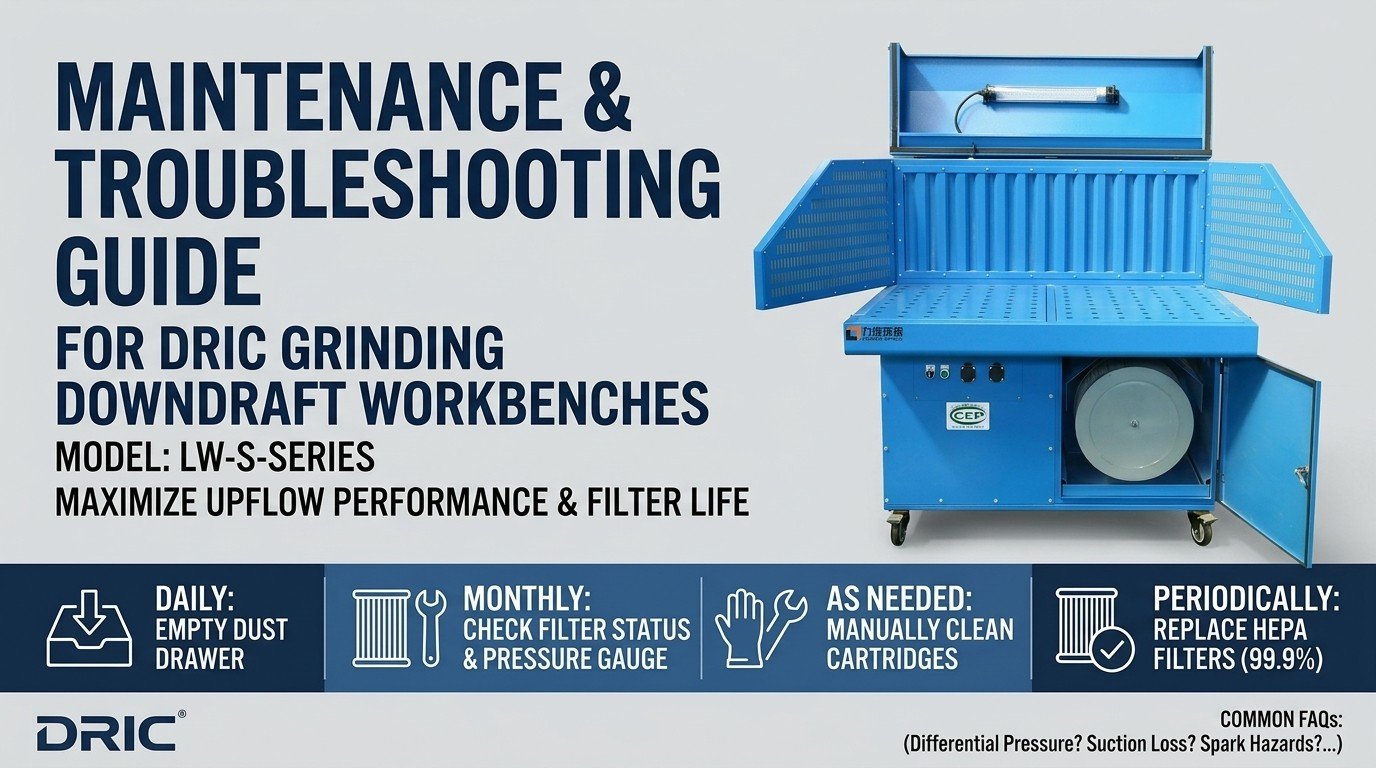

How do you properly maintain a grinding downdraft workbench to maximize airflow performance and filter service life?
Regular maintenance of an industrial grinding downdraft workbench (also known as a grinding downdraft table) involves daily dust drawer emptying, weekly compressed air pulse-jet inspections, periodic spark arrestor cleaning, and timely HEPA filter replacement. Designed by DRIC, our heavy-duty downdraft workbenches capture dust, fumes, and sparks across metal finishing (welding grinding, polishing), stone grinding (marble), and composite material sanding (carbon fiber). Equipped with multi-stage spark arrestors, HEPA filtration (99.9% efficiency down to 0.3μm), and customized table surface materials, sticking to a preventive maintenance schedule ensures continuous high suction, protects internal blower motors, and prevents operational downtime.
1. Maintenance Schedule Table: Daily, Weekly & Periodic Tasks
Establishing a structured maintenance routine prevents static pressure drops and prolongs the lifespan of primary filter cartridges and secondary HEPA filters:
| Maintenance Interval | Component / System Area | Operational Standard & Action Required |
| Daily Inspection | Ash Collection Drawer & Table Surface | Empty accumulated metal, marble, or carbon fiber dust when the drawer reaches 70% capacity. Clear debris from perforated surface grates. |
| Weekly Inspection | Spark Arrestor & Air Intake Duct | Inspect the mechanical spark arrestor baffles; remove metal slag or heavy debris to prevent airflow blockages and fire hazards. |
| Monthly Inspection | Compressed Air Supply & Pulse-Jet System | Verify reverse pulse-jet compressed air pressure (0.4-0.6 MPa); check solenoid valves for clean firing during reverse pulse cycles. |
| Bi-Annual / Annual | HEPA Filter Stage & Door Gaskets | Check the secondary HEPA filter (99.9% efficiency) for dust saturation or differential pressure warnings; replace cartridges when airflow drops. |
2. Step-by-Step Maintenance Guide: How to Safely Service Filter Cartridges & Spark Arrestors
Follow this 5-step engineering protocol when performing routine filter maintenance or inspecting the spark protection system on your DRIC grinding table:
1.Power Down & Lockout Electrical Supply
Shut down the downdraft workbench completely. Disconnect and lock out the main power supply to ensure operator safety during maintenance.
2.Equip Personal Protective Equipment (PPE)
Put on an N95 or FFPE particle-rated dust mask, safety goggles, and heavy-duty protective gloves to avoid contact with respirable silica, metal oxides, or carbon fiber dust.
3.Inspect & Clean Mechanical Spark Arrestor
Open the access hatch beneath the tabletop grating. Remove the mechanical spark arrestor baffle plates and clean off trapped embers, heavy slag, or coarse dust particles.
4.Perform Compressed Air Cartridge Cleaning
If manual air-gun cleaning is required alongside automatic pulse-jet cycles, blow compressed air (0.4-0.5 MPa) along the filter pleats from the inside out to dislodge surface dust cake into the drawer.
5.Check HEPA Filter Stage & Re-seal Enclosure
Inspect the secondary HEPA filter stage (99.9% efficiency). If the differential pressure remains high after primary cartridge pulse cleaning, replace the HEPA element, verify door rubber seals, and close access doors securely.
3. FAQ: Troubleshooting & Maintenance Engineering
Q: Why is my downdraft workbench losing suction even though the blower motor is running?
A: Suction loss on a grinding downdraft table is usually caused by clogged primary filter cartridges, a saturated secondary HEPA filter, or an overfilled dust collection drawer. Check the differential pressure gauge. If the filters are loaded with sticky composite resin or fine metal dust, trigger a manual pulse-jet cleaning cycle or replace the cartridges. Also, ensure the spark arrestor mesh is free of slag buildup.
Q: How often should filter cartridges and HEPA filters (99.9%) be replaced?
A: Under standard 8-hour daily production conditions, primary PTFE nanofiber cartridges typically last 12 to 24 months thanks to the automated reverse pulse-jet cleaning system. The secondary HEPA filter (99.9% filter rate down to 0.3μm) should be replaced every 12 months or whenever baseline differential pressure stays above recommended operational thresholds after primary cleaning.
Q: What special maintenance is required when switching between metal polishing and composite sanding?
A: When switching from spark-producing applications (welding grinding, metal polishing) to combustible dust applications (carbon fiber or wood sanding), thoroughly empty and clean the ash collection drawer and spark arrestor. Removing reactive metal dust or lingering hot particles prevents combustible composite dust from contacting residual hot embers.
