Shipbuilding: On-torch Fume Extractor

The shipbuilding industry is the backbone of global commerce, but it is also one of the most challenging environments for worker safety. Between the massive steel hulls and the intricate network of ballast tanks, double bottoms, and engine rooms, welders are often forced to work in "the belly of the beast."

In these confined and narrow spaces, traditional ventilation often fails. This is where High-Vacuum (Hi-Vac) Weld Fume Extraction technology becomes not just an option, but a necessity.

The Shipbuilding Dilemma: Why Standard Solutions Fail

In a typical open-floor factory, a mobile fume extractor with a large flexible arm is the go-to solution. However, shipbuilding is anything but typical.

1. Spatial Constraints: Welders often work in compartments accessible only by small manholes. A bulky mobile unit cannot be hauled into these spaces.

2. Maneuverability Issues: Even if a mobile unit could fit, the constant repositioning of a large suction arm is impossible when the welder is squeezed between bulkheads.

3. Cross-Contamination: In enclosed steel structures, welding fumes (containing hazardous substances like manganese, hexavalent chromium, and lead) bounce off walls and linger, creating a toxic "cloud" that endangers not just the welder, but everyone in the vicinity.

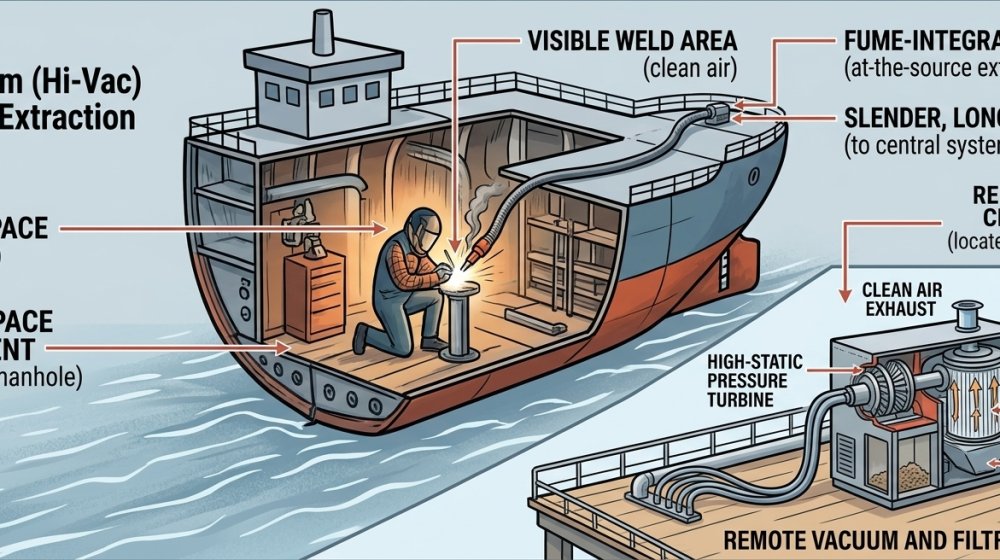

Enter High-Vacuum Technology: The "At-the-Source" Revolution

High-vacuum systems differ fundamentally from low-vacuum (high-volume) systems. While a standard extractor tries to capture a large volume of air from a distance, a High-Vacuum Fume Extractor uses high static pressure to pull a smaller volume of air at very high speeds through small-diameter hoses.

Integrated Torch Suction: Clean Air Starts at the Arc

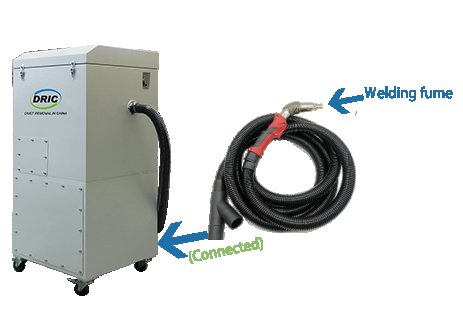

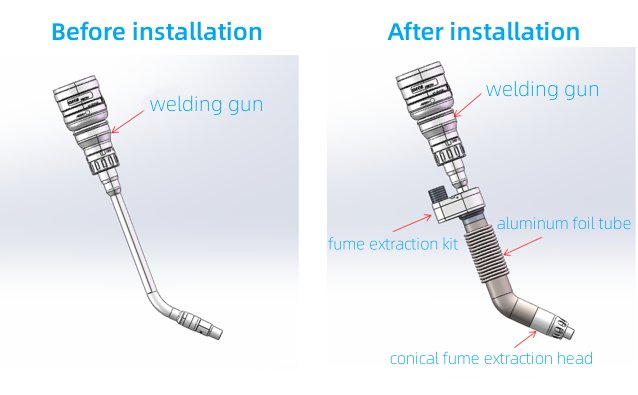

The most significant advantage for shipbuilders is the ability to use fume-integrated welding torches. Instead of a separate, clunky suction hood, the extraction nozzle is built directly onto the front end of the welding gun.

As the welder strikes the arc, the vacuum immediately captures the smoke before it ever reaches the welder’s breathing zone. This "on-torch" extraction follows the welder's hand movements automatically—no manual adjustment of a suction arm is required.

Slender, Long-Reach Hosing

In shipbuilding, the power source and the vacuum unit might be 20 to 50 meters away from the actual welding point. High-vacuum systems utilize slender, reinforced hoses (typically 32mm to 50mm in diameter). These hoses are:

• Lightweight enough to be pulled through narrow pipes and manholes.

• Durable enough to withstand the friction of a shipyard floor.

• Capable of maintaining high suction power over long distances without significant pressure loss.

Technical Advantages of High-Vacuum Systems in Shipyards

To understand why this system is the gold standard for narrow-space welding, we must look at the technical performance:

Efficient Filtration for Hazardous Fumes

Shipbuilding involves various alloys and coatings that produce complex chemical fumes. High-vacuum units are typically equipped with HEPA filters or PTFE-coated cartridges, achieving filtration efficiencies of up to 99.9%. The dust is collected in a sealed bin, preventing secondary pollution during disposal.

Automatic Start/Stop Functionality

In a busy shipyard, efficiency is king. Most industrial Hi-Vac units feature an automatic sensing clamp. When the welder starts the arc, the vacuum kicks in; when they stop, the vacuum shuts down (often with a slight delay to clear the hose). This saves energy and extends the lifespan of the motor.

Multi-User Capabilities

Large-scale shipbuilding projects often require multiple welders working in the same section. High-vacuum systems can be configured as centralized systems, where one powerful turbine supports multiple suction points via a manifold. This eliminates the need for dozens of individual machines cluttering the deck.

Improving Productivity and Safety Compliance

Beyond the health benefits, implementing high-vacuum extraction has a direct impact on the bottom line:

• Reduced Down-Time: Welders don't have to stop every ten minutes to reposition a heavy suction hood. They can focus entirely on the weld bead.

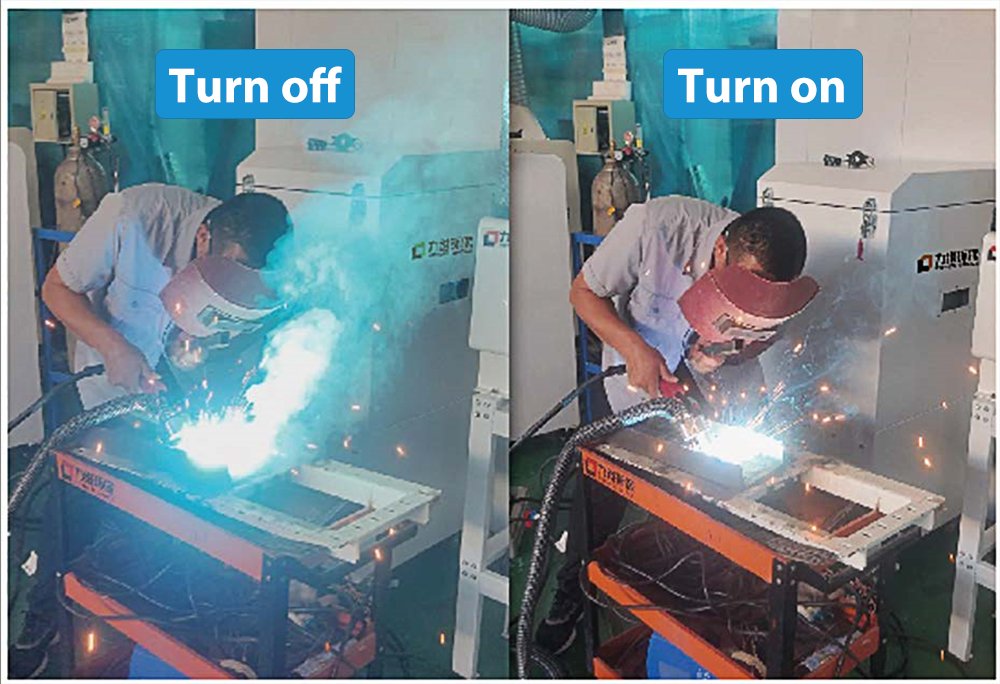

• Better Visibility: By removing the "smoke screen" instantly at the arc, the welder has a clearer view of the weld pool, leading to higher-quality welds and fewer re-works.

• Regulatory Compliance: International standards (such as OSHA in the US or ISO 15012-1) are becoming stricter regarding welding fumes. Using at-the-source extraction demonstrates a commitment to the highest safety standards, which is crucial for international shipbuilding contracts.

Key Considerations for Choosing a Shipyard Fume Extractor

When selecting a unit for your facility, consider the following specifications:

1. Static Pressure (Pa): Ensure the unit provides enough "lift" (usually above 20,000 Pa) to overcome the resistance of long hoses.

2. Portability of the Turbine: While the hoses are long, the main unit should still be "man-portable" or crane-liftable to move between different decks of the vessel.

3. Filter Cleaning System: Look for units with pulse-jet cleaning. This uses a blast of compressed air to clean the filter automatically, ensuring the suction remains constant throughout a shift.

Conclusion

The evolution of shipbuilding demands an evolution in safety equipment. The days of relying on "natural ventilation" in a steel hull are over. By adopting High-Vacuum Weld Fume Extractors with on-torch suction and slender hosing, shipyard managers can protect their most valuable asset—their workers—while simultaneously boosting efficiency in the most challenging narrow spaces.

Clean air is no longer a luxury in shipbuilding; it is a precision tool for success.
