How many welding stations can a single mobile fume extractor actually support?
When investing in shop floor safety, B2B buyers rarely care about abstract "coverage square footage"—they care about workstation capacity. A high-performance special portable welding fume extractor acts as an agile, localized shield, capturing toxic metallic smoke directly at the source. Engineered by DRIC, our mobile units deliver dedicated airflow configurations ranging from 2500m3/h to 3500m3/h. Whether configured as a dedicated one-on-one station unit or a high-vacuum dual-arm system, DRIC ensures every active welder has continuous, OSHA-compliant breathing protection without wasting extraction power on empty workspace.
1. The Dynamic Shop Floor Challenge: Scattered Stations & The Workstation Dilemma
For specialized manufacturers—such as those producing textile machinery, commercial knitting components, or heavy fabric-processing equipment—workstation setups present unique extraction challenges:
Scattered, Low-Volume Workstations: In a workshop operating 5 to 6 manual welding bays, layouts often change as different machine jigs are configured. Running permanent overhead ducting to all 6 spots is an expensive, inflexible logistical nightmare.
The Shared-Extractor Myth: Buyers often try to save budget by purchasing one large stationary fan and splitting it across 3 or 4 stations using long flexible duct runs. This results in severe friction losses, leaving none of the stations with enough vacuum pressure to draw away heavy fumes.
Workspace Obstructions: Textile machinery workshops are crowded with precision jigs, raw materials, and moving parts. Centralized hoods sit too high to capture localized smoke, allowing fine soot to settle on high-precision CNC electronics and weaving mechanisms.
2. Station-Based Decision Matrix: Matching Units to Active Welders
To help your production team make an informed decision, we have structured the key selection factors around workstation capacity and operational behavior:
| Selection Criteria | Standard Multi-Branch Setup | DRIC Localized Solution |
| Station Capacity | One large machine split across 3+ stations; results in weak suction when all are active. | Strictly 1-to-1 (Single-Arm) or 1-to-2 (Dual-Arm) to guarantee powerful capture velocity. |
| Suction Hose Design | Internal-spring arms that clog with oily welding soot and sag, dropping away from the weld joint. | External-skeleton flexible arms (360° rotation) that keep joints outside the dirty airflow path. |
| Filter Lifespan | Cheap paper filters that saturate and clog rapidly, requiring constant manual cleaning. | PTFE-membrane nanofiber cartridges with automated reverse pulse-jet self-cleaning systems. |
3. Professional Avoidance Guide: 3 Sourcing Pitfalls & Selection Strategies
When equipping manual welding bays (especially when scaling up from a trial run), keep these station-centric strategies in mind:
Pitfall 1: Over-Allocating Stations to a Single Extractor to "Save Money"
Attempting to run three or four active welding arcs off one mid-sized mobile unit is a common mistake. Since manual welding is intermittent, air volume will bypass the active station and escape through the open, idle suction hoods, leaving the active welder completely unprotected.
The Strategy (The "Trial Run"): For a factory with 5 to 6 manual welding stations, start with a low-risk pilot. Purchase 2 single-station mobile units to test real-world suction and operator handling. Once your team experiences the flexibility of rolling the extractor exactly where the work is, you can scale to a full 1-to-1 fleet with absolute confidence.
Pitfall 2: Ignoring Friction Loss and Static Pressure at the Hood
A machine that claims 3000m3/h on the nameplate might deliver less than half that suction power once a 3m flexible arm and a dirty filter cartridge are added.
The Strategy: Choose units engineered with high static pressure motors. Ensure the suction arm has an external joint design to maintain an unobstructed internal airway, minimizing airflow resistance.
Pitfall 3: Failing to Match Filter Coatings to Material Chemistry
Welding mild steel versus precision stainless steel or oily textile machinery components produces different types of dust. Standard filters will fail rapidly when exposed to oily residues.
The Strategy: Select extractors featuring flame-retardant nanofiber or PTFE-coated cartridges. When paired with integrated mechanical spark arrestors, these systems cool and deflect hot sparks safely into a lower ash collection drawer before they can damage the filter.
4. Step-by-Step Pilot Deployment Strategy
If you are setting up localized extraction for the first time, follow this risk-free path to scale:
1.Assess Active Welder Locations
Map out your active manual welding bays. Identify which 2 stations handle the highest daily workload and generate the most dense fume concentration.
2.Deploy 2 Standalone Trial Units

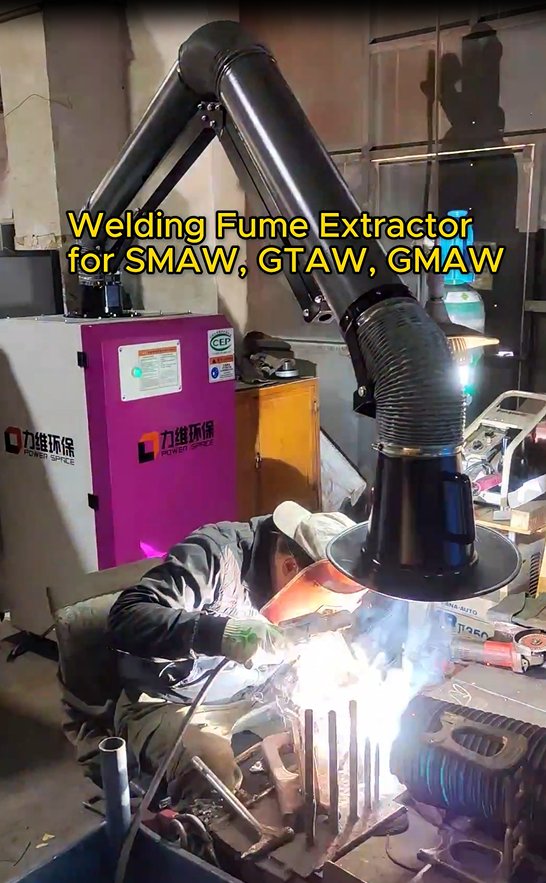

Introduce two single-station DRIC mobile extractors into the high-workload bays. Position the suction hoods approximately 30cm above the active welding arcs.
3.Verify Suction & Self-Cleaning
Run the trial for 2 to 4 weeks. Have the operators use the automatic pulse-jet self-cleaning function and empty the lower ash collection drawer to see how much particulate is kept out of the room.
4.Scale Across Remaining Bays
With proven efficiency and high welder acceptance, order additional mobile units to equip the remaining manual welding stations in your shop.
5. FAQ
Q: How many active welding stations can a single DRIC mobile extractor handle?
A: It depends on the model configuration:
Single-Arm Models (2.2kW): Optimized for 1 station. This guarantees maximum capture velocity (> 1500m3/h at the hood), perfect for heavy-duty manual welding.
Dual-Arm Models (3.0-4.0 kw): Engineered to handle 2 adjacent stations. These units feature independent dampers inside the arms, allowing operators to shut off suction on one side when a station is idle, concentrating 100% of the vacuum power on the active station.
Q: Why do we recommend single mobile units over a centralized duct network for 5 to 6 stations?
A: Flexibility and cost. A centralized system requires fixed ducting, which ruins your workshop's flexibility if you rearrange your welding jigs. Additionally, a central system runs at full power even if only 1 welder is working, which wastes high amounts of electricity. Mobile units can be switched on individually, moving dynamically with your operators and reducing overall energy consumption.
Q: How often does the filter cartridge need to be replaced in a manual machinery welding shop?
A: Because manual welding is intermittent, a high-quality filter cartridge paired with an automated reverse-pulse compressed air cleaning system typically lasts 12 to 24 months. Operators only need to empty the lower dust collection drawer once every 1 to 2 weeks, requiring zero specialized technical training.
