High-Efficiency Plasma Dust Collector Solutions

In today's heavy industrial sectors, managing the intense fumes and fine particulates generated during high-power manufacturing is no longer optional. It is a fundamental requirement for environmental compliance and the protection of skilled labor. Dric has established itself as a leader in this field, specifically with the LW12 series Laser Fume Extraction system, designed to tackle the extreme demands of high-wattage laser cutting.

This case study examines a recent project for a client in the resource recycling industry, where massive 6000W laser systems were creating a challenging air quality environment.

The Challenge: High-Power Cutting in Large Facilities

The client operates a specialized resource recycling workshop. The facility is expansive, measuring approximately 15m*4m, and houses several advanced 6000W laser cutting machines. These machines are mounted on rail systems at a height of 0.6m, allowing for the precise movement required to cut through heavy-duty materials.

The primary hurdle was the sheer volume of "smoke haze" and abrasive dust produced. When cutting 50mm thick sheets, the plume of fumes is significant. Without an effective laser fume extractor, these emissions posed a dual threat: they jeopardized worker respiratory health and settled on the laser's sensitive rail systems and optics, threatening to shorten the equipment's lifespan and reduce cutting accuracy.

The Dric Installation Process: Custom Engineering

Recognizing that a standard "out-of-the-box" fan wouldn't suffice, Dric was commissioned to design a bespoke environmental protection solution. Our approach followed a rigorous engineering path:

• Field Surveys: The Dric expert team conducted detailed on-site surveys to map the workshop layout, equipment configuration, and the specific "path of smoke" generated during the 50mm cutting cycles.

• Bespoke Design: Based on the data, Dric developed a customized laser dust removal system. The focus was on maximizing capture velocity while ensuring the system didn't interfere with the precision movement of the 0.6m rail system.

• Seamless Integration: The installation team integrated the LW12 series units directly with the existing laser cutters. By capturing fumes at the point of origin, the system prevents pollutants from ever migrating into the general workshop atmosphere.

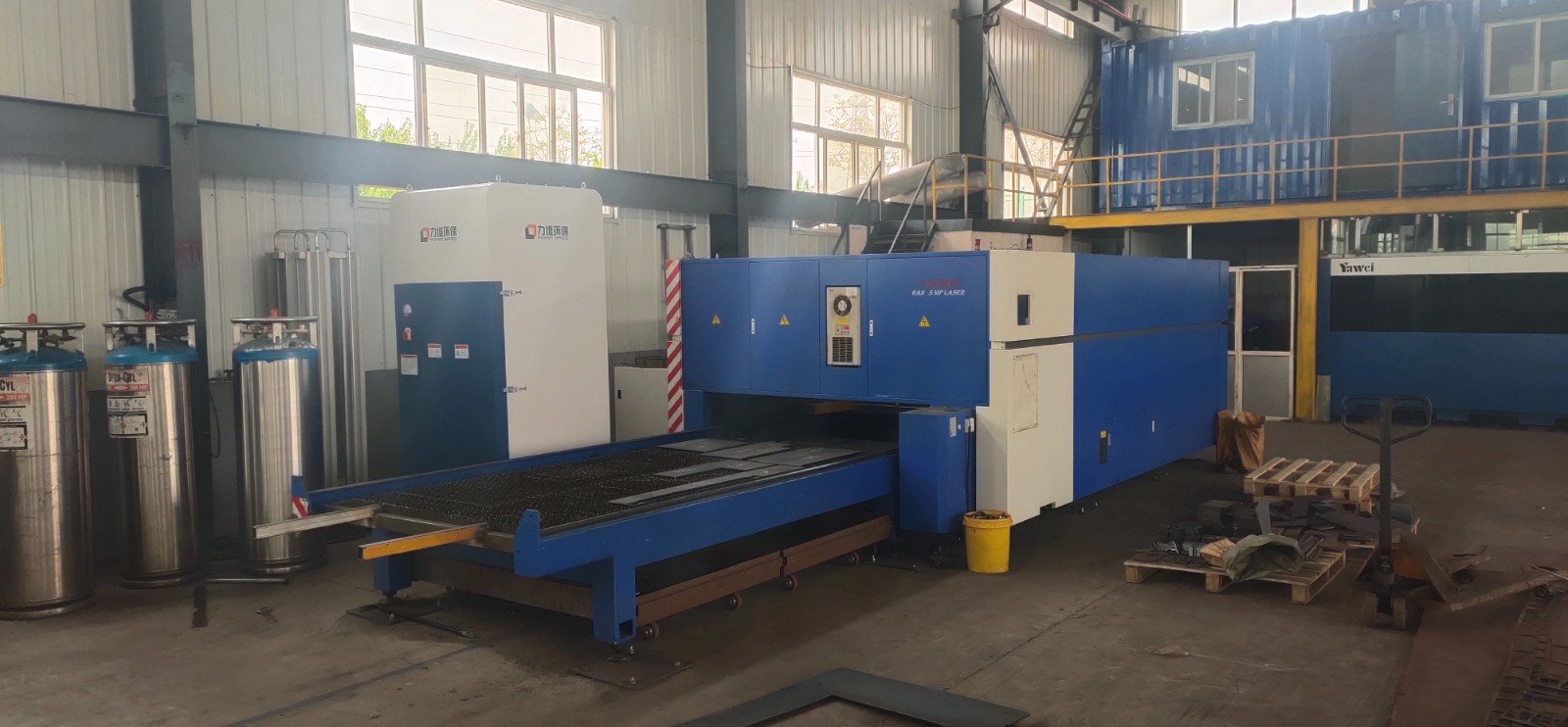

(The plasma dust collector after installation)

Evaluating the LW12 Laser Fume Extractor Performance

The implementation of the Dric system has transformed the facility. The LW12 series has proven to be an incredibly versatile workhorse, capable of adapting to various processes including gantry laser cutting, plasma cutting, and flame cutting.

Key Performance Highlights:

• High-Volume Filtration: Even during heavy-duty 50mm plate cutting, the system maintains high filtration efficiency, neutralizing harmful sub-micron particles.

• Modular Reliability: The system's modular architecture means that as the client's facility grows, the fume extraction system can be easily upgraded or maintained without total system shutdowns.

• Protective Efficiency: By keeping the air clear, the client has noted a decrease in machine maintenance frequency, particularly regarding the cleaning of rails and mirrors.

Technical Deep Dive: Inside the Dric LW12 Series

The Dric LW12 series utilizes a sophisticated "suction and blowing" (push-pull) method for smoke collection. This ensures that even on wide cutting tables, the smoke is effectively "pushed" toward the suction inlet, leaving no dead zones.

Fire Safety and Spark Arresting

One of the most critical features of the Dric design is the integrated pre-filter module. High-power cutting generates hot sparks; the pre-filter effectively traps these large, hot particulates before they can reach the main filter chamber. This prevents filter fires and extends the life of the primary filter media by reducing the mechanical impact of large dust particles.

Intelligent Self-Cleaning

To maintain 24/7 operational readiness, the system is equipped with an automatic pulse-jet ash cleaning system. Using high-pressure airflow, the system periodically shakes the dust off the filter cartridges into a collection hopper. The operator only needs to perform a quick, regular cleaning of the hopper—the rest is fully automated.

Conclusion: A Healthy Workforce and a Productive Plant

The application of the Dric laser fume extraction system has been met with unanimous praise from the client's employees. By effectively eliminating the smoke and dust pollution generated by the 6000W machines, the enterprise has secured a safer, healthier workplace.

The Dric LW12 series has proved that with the right engineering, even the most intense industrial processes can be made clean and efficient.

Is your high-power laser system creating an air quality challenge? Contact the Dric engineering team today for a custom site survey and extraction proposal.
