How Laser Dust Collection Systems Work

How does an industrial laser dust collection system work to eliminate toxic cutting fumes?

A professional laser dust collection system operates through a seamless 3-stage synergy: Source Fume Capture at the cutting bed, Ductwork Conveyance under high static pressure, and Dust Extraction & Filtration at the main collector unit. Connected directly to the laser cutting machine's collection ports, DRIC heavy-duty laser dust extractors and laser cutter dust collectors provide continuous negative vacuum pressure to pull sub-micron particles, hot sparks, and toxic metallic smoke away from sensitive optics, releasing $99.97\%$ purified clean air back into your facility.

1. Working Principle: The 3 Interconnected Steps of Laser Dust Extraction

Industrial laser cutting generates extreme heat, vaporizing metal into microscopic particulates (＜0.3μm) and hazardous fumes. To effectively purify the workshop environment, a laser cutter dust extractor relies on three distinct, interdependent components:

Step1: Machine Bed Fume Capture

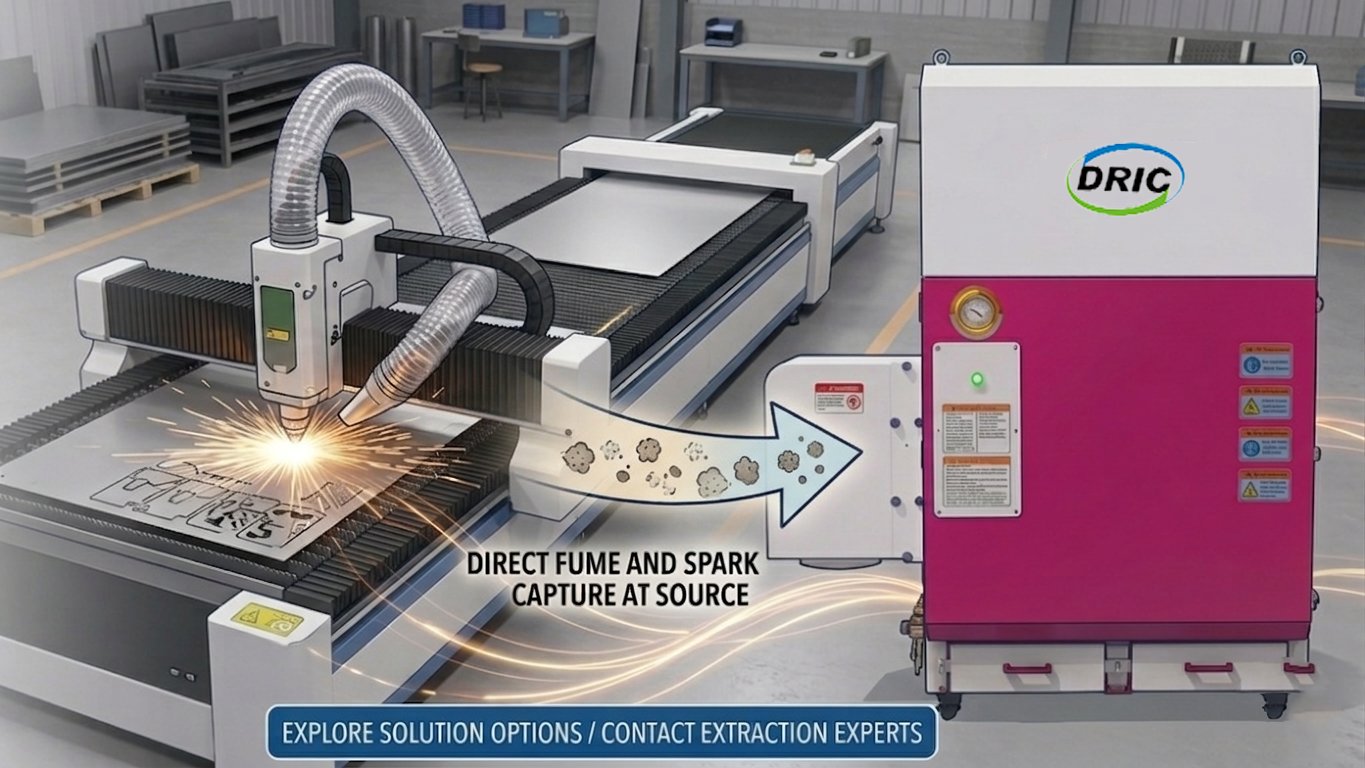

The process begins directly inside the laser machine enclosure. Optimized flow channel designs, strategic suction intake positions, and precise port sizing ensure that fumes generated at the laser beam focal point are immediately trapped under negative vacuum pressure before escaping into the shop floor air.

Step 2: Ductwork Conveyance System

Once captured, smoke and particulate matter must travel through the machine's internal air channels and connection piping. Proper duct sizing and high-velocity airflow prevent heavy metal dust from settling inside the pipes, ensuring smooth, bottleneck-free transport to the purification unit.

Step 3: Dust Extractor Processing & Air Purification

As the system's power hub, the DRIC dust collector provides the necessary suction vacuum. Air passes through integrated spark arrestors and multi-layer flame-retardant PTFE nanofiber cartridge filters, trapping 99.9% of sub-micron particles down to 0.3μm and venting clean, safe air.

2. Technical Parameter Table : DRIC Classical Series Specifications

The table below highlights how DRIC's core industrial models deliver target airflow and suction power across different laser cutting machine setups:

3. FAQ: Working Principle & System Architecture

Q: Why are all three parts (Bed Capture, Ductwork, Extractor) equally critical for laser dust collection?

A: If any single stage fails, the entire extraction process breaks down. A weak machine intake (Capture) allows fumes to escape into the shop; undersized or leaking pipes (Ductwork) cause pressure drops and dust settling; and an underpowered collector (Extractor) cannot maintain suction or properly filter sub-micron particles.

Q: How does connecting a DRIC laser cutter dust extractor protect optical cutting lenses?

A: High-power laser cutting produces rising thermal plumes containing sticky soot and micro-particles. By maintaining continuous negative vacuum pressure directly at the cutting bed intake, a DRIC laser dust extractor redirects smoke downward and away from the cutting head, preventing thermal lensing, focal shift, and lens burnout.

Q: What is the benefit of reverse pulse-jet cleaning in a laser dust collection system?

A: Laser cutting generates high volumes of fine, sticky metal smoke. Without automated cleaning, filters clog rapidly, reducing suction volume. Automated reverse pulse-jet systems blast short pulses of clean compressed air through the filters, knocking dust cakes into the collection drawer while the laser cutter continues operating continuously.
