How do global manufacturers select the right ductless clean air tower configuration for complex welding, cutting, and space-constrained workshop layouts?
Choosing the right fume extraction tower for welding depends on thermal plume dynamics, workstation layouts, and crane clearances. Designed by DRIC, a ductless clean air tower (or standalone industrial air purification tower) purifies ambient workshop air without requiring external ductwork or wall penetrations. By offering both Top-Suction and Bottom-Suction/Top-Delivery configurations, DRIC air towers capture toxic particulate through 360° inlet arrays, utilize automated PLC controls, and easily relocate via heavy-duty casters—delivering optimal clean air coverage for centralized welding halls, multi-process stations, and space-limited facilities.
1. Model Selection Table: Top-Suction vs. Bottom-Suction Air Towers
Selecting the correct standalone industrial air purification tower requires matching the unit's airflow pattern to your facility's process heat, ceiling height, and layout constraints:
| Configuration / Criteria | Top-Suction Displacement Tower (LW-C-1609X) | Bottom-Suction Air Delivery Tower (LW-C-1608S) | Combined Strategy |
| Airflow Mechanism | Top 360° suction inlets pull rising warm fumes; bottom louvers discharge clean air. | Mid-level suction grilles pull ambient air; top spherical nozzles project clean air long distances. | Combined top-capture and high-throw jet distribution across large open bays. |
| Ideal Workstation Setup | Multi-station manual welding, robotic welding cells, heavy structural welding. | Mixed welding/grinding, high-dust areas, low-ceiling work areas without strong thermal plumes. | Expansive, high-ceiling manufacturing halls with both localized thermal smoke and widespread dust. |
| Best Used When... | Intense heat creates a strong natural upward thermal plume (rising smoke). | Processes generate heavy cold dust or require directional clean air throw across wide spans. | Facility needs full workshop circulation covering high-bay welding and low-bay grinding zones. |
| Overhead Crane Clearance | 100% compatible; zero ductwork or overhead arms to obstruct crane bridges. | 100% compatible; standalone floor footprint keeps crane tracks completely clear. | Completely ductless; preserves unimpeded crane bridge movement across all bays. |
| Space Constraint Benefit | Compact vertical footprint; ideal when floor space is tight near weld stations. | Flexible placement along perimeter walls to project purified air inward. | Maximizes clean air delivery per square meter without adding floor clutter. |

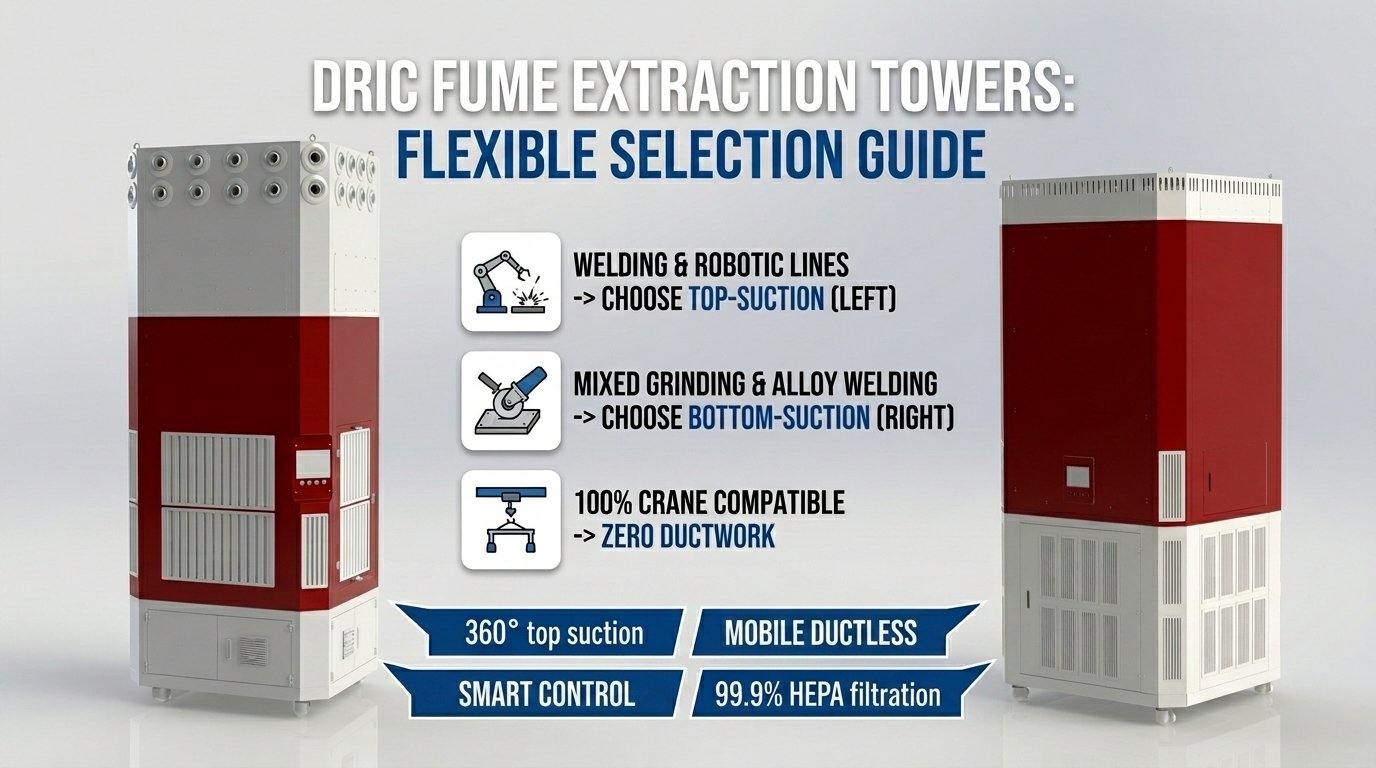

（Air clean tower model selection）
2. Engineering Selection Protocol: Matching Workshop Conditions to Equipment
When configuring a DRIC ductless clean air tower network, follow these core application guidelines:
1.Evaluating Multi-Station Welding (Manual, Robotic & Heavy Structural)
For centralized workshops featuring a mix of manual arc welding, robotic welding lines, and large structural fabrications, select Top-Suction Towers. Welding generates significant heat, causing toxic smoke to rise rapidly. Top-suction towers capture this rising thermal plume directly at ceiling level (360°) before it disperses across the facility.
2.Why Overhead Hoods Fail for Laser Cutting Machines
Overhead hood capture is NOT recommended for laser cutting machines due to two main risks: high-velocity sparks can directly strike overhead filters and trigger fire hazards, and wide overhead hoods disrupt the precise airflow dynamics required for laser bed exhaust. Laser cutting dust must be handled by dedicated low-level side-draft or downdraft extraction, supplemented by ambient air towers for overall hall filtration.
3.Solving Tight Floor Space Constraints
When welding workshop floor space is extremely tight, deploy DRIC Top-Suction Standalone Towers. Because they utilize a vertical tower design with a compact floor footprint (often under 1.5㎡ and require zero overhead duct clearance, they can be placed in narrow corridors, next to building columns, or along perimeter walls without interfering with worker movement or material staging.
4.Deploying a Hybrid Combination System
In massive manufacturing halls combining high-thermal aluminum/copper welding with low-thermal grinding or laser cutting, deploy a Hybrid Strategy. Position Top-Suction Towers near heavy welding cells to capture rising smoke, and use Bottom-Suction/Top-Delivery Towers near perimeter areas to throw filtered air deep into the facility, establishing a complete indoor air circulation loop.
3. FAQ
Q: How many clean air towers do I need for my workshop size/square footage?
A: The required number of units depends on workshop volume (L*W*H) and the target Air Exchange Rate (typically 4 to 8 air changes per hour for industrial welding). As a general rule of thumb, one standard DRIC fume extraction tower for welding effectively covers an ambient floor area of approximately 150-300㎡ (approx. 1,600-3,200sq ft), depending on ceiling height and dust concentration. DRIC application engineers perform precise volumetric calculations during consultation.
Q: Can a ductless clean air tower replace traditional source-capture extraction arms?
A: Yes, in environments where source-capture arms are impractical. While flexible arms excel at direct point capture, they are often difficult for operators to reposition constantly on large structural weldments and physically conflict with overhead crane bridges. A ductless clean air tower purifies the ambient workshop atmosphere continuously, capturing floating fumes without requiring welders to adjust hoods or arms during production.
Q: Is any external ductwork or wall penetration required for installation?
A: No. Every DRIC standalone industrial air purification tower is a 100% ductless, self-contained system. Purified air is filtered through high-efficiency internal cartridges and recirculated directly back into the workshop. This eliminates roof penetrations, outdoor exhaust permits, and the massive heating/cooling energy losses associated with traditional ducted exhaust systems.
