How do you select the right grinding downdraft workbench based on your specific working conditions and material requirements?
Choosing the correct grinding downdraft workbench (or grinding downdraft table) requires matching workbench dimensions, airflow capacity, table surface materials, and safety accessories to your workpiece size and material properties. Engineered by DRIC, our downdraft tables capture airborne particulates directly at the source during metal finishing (welding grinding, polishing), stone grinding (marble processing), and composite material sanding (carbon fiber). Equipped with multi-stage spark arrestors, high-efficiency HEPA filtration (99.9% filtration rate down to 0.3μm), and customized table surface materials, selecting the optimal DRIC model guarantees compliance with air quality standards while maximizing workplace safety.

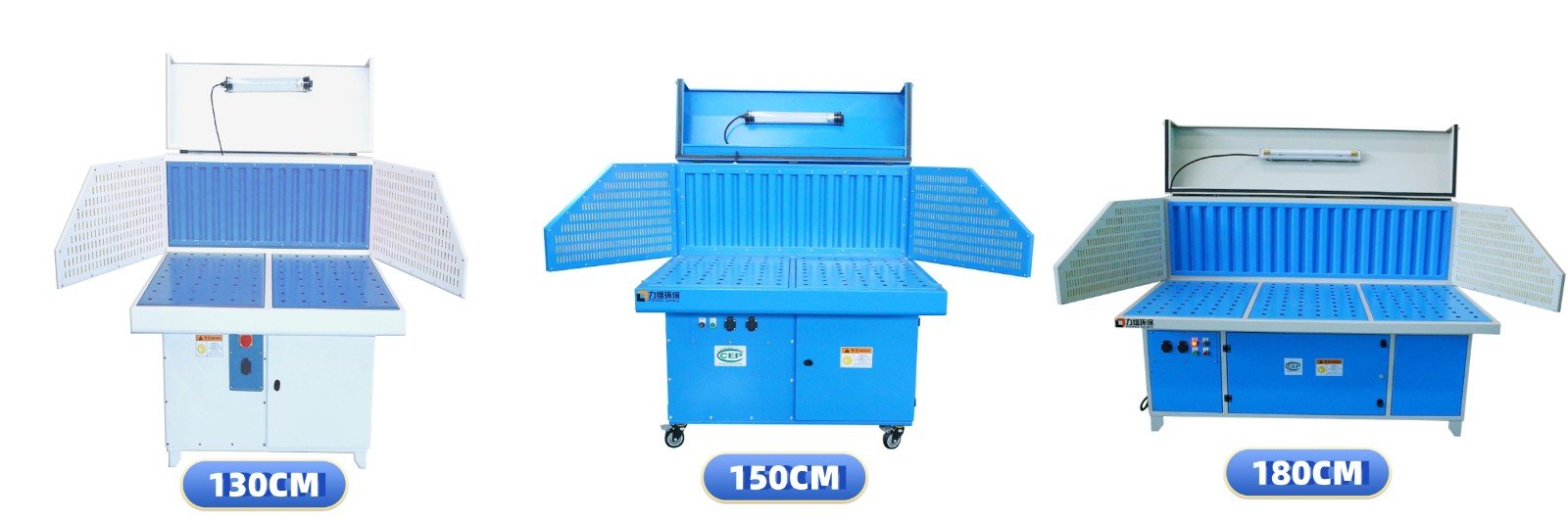

1. Parameter & Model Selection Table: DRIC LW-C-1401 Series
Selecting the appropriate table size and configuration depends on workpiece dimensions, airflow velocity requirements, and spatial layout in your workshop:
| Model Version | Approximate Size (W×L×H) | Motor Power | Process Capacity (Airflow) | Primary Application Match |
LW-C-1401 (130cm Compact) | 1300×1050×1530 mm | 3kW | 2400m³/h | Compact work cells, small metal component deburring, precision hand polishing. |
LW-C-1401 (150cm Standard) | 1500×1050×1530 mm | Medium-sized weldments, marble edge grinding, carbon fiber panel sanding. | ||
LW-C-1401 (180cm Extended) | 1800×1050×1530 mm | Large structural metal parts, long composite sheets, multi-tool grinding setups. |
2. Step-by-Step Selection Workflow: How to Match a Downdraft Table to Your Workplace
Follow this 4-step engineering protocol to select and configure the ideal grinding downdraft table for your factory operations:
1.Assess Workpiece Dimensions & Choose Table Width
Measure the maximum dimensions of the parts being processed. Choose between the 1300mm, 1500mm, or 1800mm model width of the DRIC LW-C-1401 series to ensure the workpiece sits completely within the active downdraft suction zone.
2.Select Surface Material Based on Application Needs
Customized table surface materials prevent part damage and fire hazards. Select non-scratch wooden or rubberized slats for polished marble or stainless steel, heavy steel grates for heavy welding and grinding, or anti-static surfaces for composite sanding.
3.Verify Spark Protection for High-Thermal Processes
If your working conditions involve metal polishing or weld grinding, ensure the system includes an integrated mechanical spark arrestor to knock down high-velocity incandescent embers before they reach the main filter cartridges.
4.Confirm Air Filtration & Clean Air Recirculation
Ensure the workbench incorporates a secondary HEPA filter (99.9% efficiency down to 0.3μm） so purified air can be safely recirculated back into the facility without requiring expensive external ductwork.
3. FAQ: Sizing & Operational Engineering
Q: Why is process airflow (2400m³/h) consistent across the 130cm, 150cm, and 180cm models?
A: The DRIC LW-C-1401 series utilizes a standardized 3 kW motor power setup generating 2400m³/h process capacity. This air volume ensures optimal downdraft face velocity (0.5-1.2m/s) across all three bed sizes, effectively pulling dust and fumes downward away from the operator's breathing zone regardless of table width.
Q: Which table surface material should I select for carbon fiber sanding vs. marble grinding?
A: For carbon fiber sanding, an anti-static or high-density composite surface is recommended to prevent static electricity build-up caused by friction from dry composite particles. For marble and stone grinding, rubber-coated slats or polyurethane grid liners are ideal to prevent scratching polished stone surfaces while withstanding wet/dry debris.
Q: How does the integrated spark arrestor protect the HEPA filter during welding grinding?
A: High-speed metal grinding produces hot sparks that can burn standard filter media. DRIC grinding tables feature a built-in mechanical spark arrestor located under the grate. Sparks strike internal baffle plates and lose velocity, falling harmlessly into the dust collection drawer below, while fine dust passes safely through to the primary PTFE cartridges and secondary 99.9% HEPA filter.
