How does an industrial grinding downdraft workbench eliminate airborne dust and spark hazards directly at the work surface?

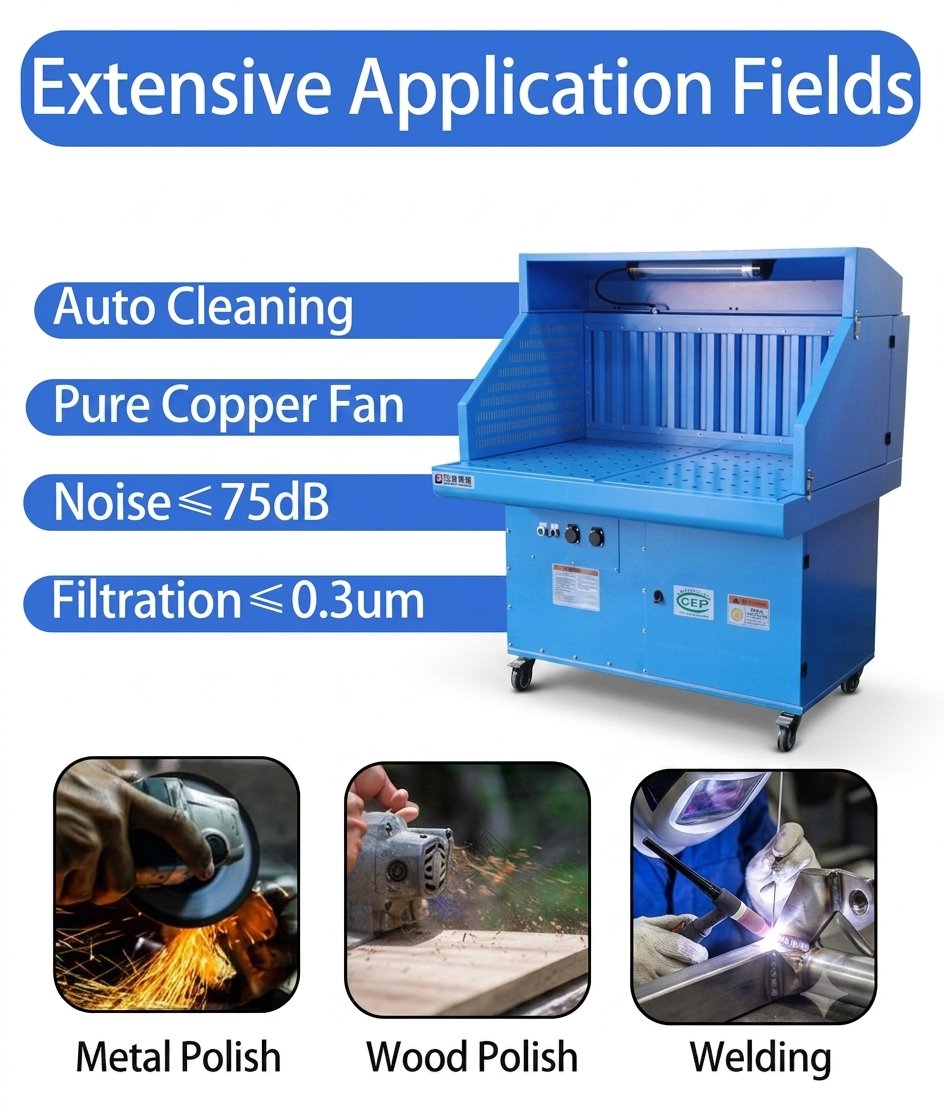

An industrial grinding downdraft workbench (also known as a grinding downdraft table) integrates powerful source-capture extraction directly beneath a perforated working table. Designed by DRIC, our heavy-duty downdraft workbenches and grinding tables capture dust, smoke, and sparks generated during metal finishing (welding grinding, polishing), stone grinding (marble processing), and composite material handling (carbon fiber sanding). Featuring integrated multi-stage spark arrestors, HEPA filtration (99.9% filter rate), and customized table surface materials (such as wood, rubber, or stainless steel), DRIC downdraft tables provide an all-in-one ergonomic workplace solution that protects operator health and maintains workplace safety standards.
1. Application & Specification Table: DRIC Grinding Downdraft Tables
Matching the right grinding workbench surface, filtration, and safety features to your material processing guarantees optimal dust extraction performance and tool longevity:
| Application Sector | Typical Processing Tasks | Recommended Table Surface | Primary Hazard Mitigated | Filtration & Safety Features |
| Metal Finishing | Heavy weld grinding, beveling, deburring, metal polishing | Heavy-duty steel grate / wooden slat protection | High-temperature spark showers, hot metal dust, welding fumes | Integrated mechanical spark arrestor + 99.9% HEPA filter |
| Stone & Masonry | Marble grinding, granite shaping, masonry sanding | High-density rubber mesh / polyurethane coated slats | Heavy silica dust particulates, surface scratching on stone slabs | Multi-cartridge PTFE filters + 99.9% HEPA final stage |
| Composite Materials | Carbon fiber sanding, fiberglass trimming, resin finishing | Anti-static composite / smooth wood grid | Conductive sub-micron composite dust, skin and eye irritants | Anti-static filter media + HEPA post-filter (99.9% efficiency) |
2. Step-by-Step Selection & Setup Workflow
Follow this 4-step engineering protocol when selecting and configuring a DRIC grinding downdraft workbench for your facility:
1.Define Material Processing & Surface Requirements
Identify your primary workspace task (metal finishing, stone grinding, or carbon fiber sanding). Select customized table surface materials (e.g., wooden slats for non-scratch metal work, anti-static grids for composites, or heavy steel grates for heavy welding).
2.Verify Airflow & Spark Safety Options
Ensure the table is configured with a built-in mechanical spark arrestor if your processes include high-velocity metal grinding or polishing sparks.
3.Select High-Efficiency HEPA Filtration
Specify high-grade PTFE nanofiber main filter cartridges backed by an integrated HEPA filter (99.9% filtration efficiency) to ensure safe indoor clean air recirculation.
4.Connect Power & Establish Maintenance Routine
Connect to your facility's power network and compressed air supply (0.4-0.6 MPa). Set up automated reverse pulse-jet cleaning and schedule routine dust drawer emptying.
3. FAQ: Technical & Operational Insights
Q: How does a downdraft table protect operators during metal polishing and welding grinding?
A: As operators grind or polish metal, thermal friction creates high-velocity dust and sparks. A grinding downdraft table creates uniform negative static pressure across the perforated worktop and backdraft panels. Fumes, metallic dust, and sparks are immediately pulled downward away from the operator's breathing zone before they can disperse into ambient shop air.
Q: Why are customized table surface materials necessary for different industrial materials?
A: Material surfaces require specialized support to prevent part damage and electrical hazards. For instance, soft wood or rubberized table slats protect polished marble or stainless steel sheets from surface scratches during heavy sanding. Anti-static table grids prevent dangerous static charge accumulation when working with combustible composite dust like carbon fiber or fiberglass.
Q: What is the role of the integrated spark arrestor and 99.9% HEPA filter?
A: The integrated spark arrestor acts as a mechanical pre-filter, forcing hot metal embers and sparks to hit deflector plates and drop safely into the dust hopper before reaching the main filters. The secondary HEPA filter (99.9% capture rate down to sub-micron levels) ensures that ultrafine respirable dust, toxic silica, or micro-particulates are completely trapped, allowing clean air to be safely recirculated back into the workshop.
