How do you properly maintain a laser dust collection system to maximize filter lifespan and maintain peak airflow?
Regular maintenance of an industrial laser dust collection system involves routine differential pressure checks, timely dust drawer emptying, compressed air pulse-jet inspection, and manual cartridge cleaning when airborne moisture or static causes particulate buildup. Engineered by DRIC, our heavy-duty laser dust extractors and laser cutter dust collectors utilize premium PTFE nanofiber cartridges and automated reverse pulse-jet cleaning to achieve 99.9% filtration efficiency down to 0.3μm. Following a structured preventive maintenance protocol protects sensitive cutting lenses, prevents suction loss, and doubles filter operational life.
1. Maintenance: Daily, Weekly & Periodic Service Schedules
Establishing a strict maintenance schedule prevents unexpected pressure drops and extends the service life of your laser cutter dust extractor:
| Maintenance Interval | Key Inspection Tasks | Action Required / Operational Standard |
| Daily Check | Differential Pressure Gauge & Dust Drawer | Check pressure gauge baseline. Empty the dust bin when filled to 70% capacity. |
| Weekly Check | Compressed Air Supply & Pulse-Jet Valves | Ensure compressed air supply stays at 0.4-0.6MPa; test pulse valves for proper firing sound. |
| Monthly Check | Manual Filter Cartridge Inspection | Inspect filter surfaces for moisture clogging or heavy dust cakes; perform deep air-gun cleaning if needed. |
| Bi-Annual / Annual | Main Seal Gaskets & Filter Replacement | Inspect door seal strips for air leaks. Replace cartridges when differential pressure remains high after cleaning. |

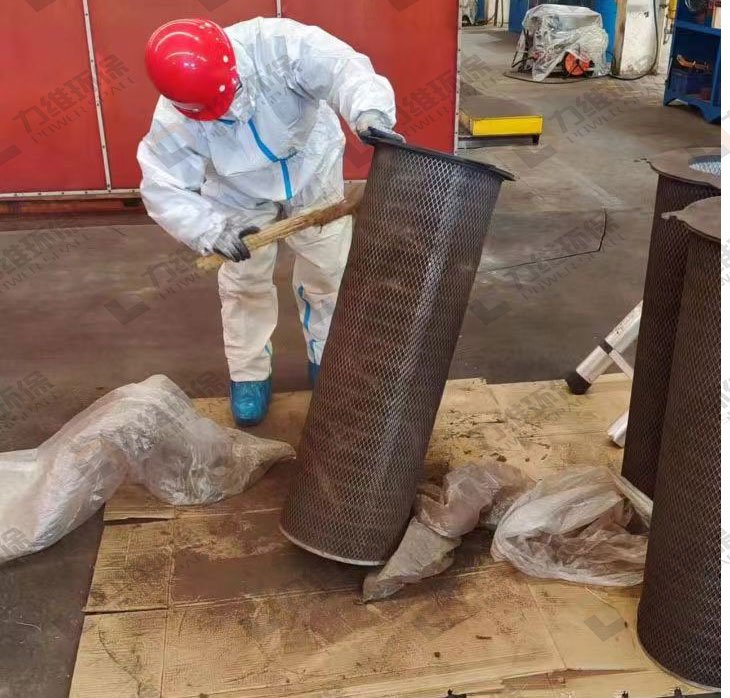

2. Step-by-Step Maintenance Guide: How to Safely Clean Filter Cartridges
When moisture in ambient shop air or electrostatic charges cause metal dust to adhere tightly to cartridge surfaces, the automated pulse-jet system may not clear the cake completely. Follow this 5-step manual maintenance protocol using a compressed air spray gun:
1.Power Down & Lockout Electrical Supply：
Ensure the laser cutting machine and dust collector are fully shut down. Disconnect and lock out the main external power supply to guarantee safe maintenance conditions.
2.Equip Personal Protective Equipment (PPE)：
Put on a clean particle-rated dust mask (such as N95 or FFPE) and heavy-duty dust-proof safety gloves to prevent direct contact or inhalation of ultrafine metallic particles.
3.Loosen Retaining Hardware & Remove Cartridges：
Use an appropriate wrench to loosen and remove the pressed lock nuts securing the filter cartridge flange inside the housing chamber. Carefully pull the cartridge out.
4.Blow Clean with Compressed Air Spray Gun：
Using a compressed air spray gun 0.4-0.5MPa, direct compressed air along the pleats of the cartridge filter from top to bottom. Blow away accumulated surface dust into a designated disposal container.
5.Inspect Gaskets & Re-install Securely：
Check the rubber sealing gasket on the cartridge top flange for cracks or wear. Re-mount the cartridge, tighten the retaining nuts evenly, and close the access door securely.
3. FAQ : Maintenance & Troubleshooting Insights
Q: Why does my laser dust collector lose suction even when the fan motor is running normally?
A: Suction loss is typically caused by clogged filter cartridges, an overflowing dust hopper, or air leaks in the ducting. If the differential pressure gauge reads unusually high, the filter pleats are saturated with fine metallic dust or moisture. Perform a manual air-gun blow-down or replace the filter cartridges. Additionally, inspect connection ducts and access door seals for negative pressure leaks.
Q: How often should filter cartridges be replaced in a high-power laser dust extraction system?
A: Under standard operating conditions 8-12hours/day, high-efficiency PTFE membrane nanofiber cartridges typically last 12 to 24 months. However, factors like high laser wattage 12kW, oily/wet plate cutting, or lack of routine compressed air cleaning can shorten filter lifespan. Replace cartridges when pulse-jet cleaning no longer reduces differential pressure below the warning threshold.
Q: Why is compressed air pressure (0.4-0.6MPa) critical for reverse pulse-jet cleaning?
A: The reverse pulse-jet system relies on rapid, high-pressure air bursts to create a shockwave inside the filter cartridge. This shockwave momentarily expands the filter pleats and knocks dust cakes off the outer PTFE membrane down into the dust hopper. If compressed air pressure drops below 0.4MPa，the pulse force is insufficient, leading to rapid filter clogging.
