Robotic & Manual Fume Extraction Guide

The transition toward automation often brings an unexpected paradox to the factory floor. When plant managers introduce collaborative robots (COBOTs) alongside human operators to boost throughput, they frequently assume that automation inherently mitigates occupational hazards. If a robot is executing the high-volume seams, the logic goes, human exposure to toxic hexavalent chromium, manganese, and zinc oxides must naturally decrease.

However, this is a dangerous misconception. In a shared COBOT and a manual welder in the welding department, spatial dynamics actually compound the airborne risks. While human welders inherently adjust their posture or utilize standard PPE to avoid the immediate plume, an automated arm lacks the sensory awareness to avoid its own smoke trail. Left unchecked, the continuous high-duty cycle of a COBOT generates a persistent, ambient thermal plume that migrates across the shop floor. Consequently, instead of protecting your workforce, an unventilated automated line effectively turns localized smoke into a facility-wide respiratory hazard.

The Physics of the Plume: Why One Size Does Not Fit All

To design an effective mitigation strategy, we must first recognize that a COBOT and a manual welder in the welding department exhibit fundamentally different operational physics.

• The Manual Station: Human operators require maximum spatial flexibility. They shift angles, change parts, and move around the workpiece. If you shackle them to a rigid, heavy hood, compliance drops, and productivity suffers.

• The COBOT Station: Collaborative robots operate with predictable, repeatable trajectories but at a much higher duty cycle. Because the robot doesn't take breaks, the mass emission rate of particulate matter per hour is significantly higher than that of a manual artisan.

Therefore, attempting to clear the air using a single, oversized ambient shop ventilation system is a costly mistake. Ambient systems pull contaminated air through the breathing zones of your workers before it reaches the ceiling filters. To truly protect your team and maintain regulatory compliance, you must implement a bifurcated, source-capture strategy that addresses the unique footprint of both man and machine.

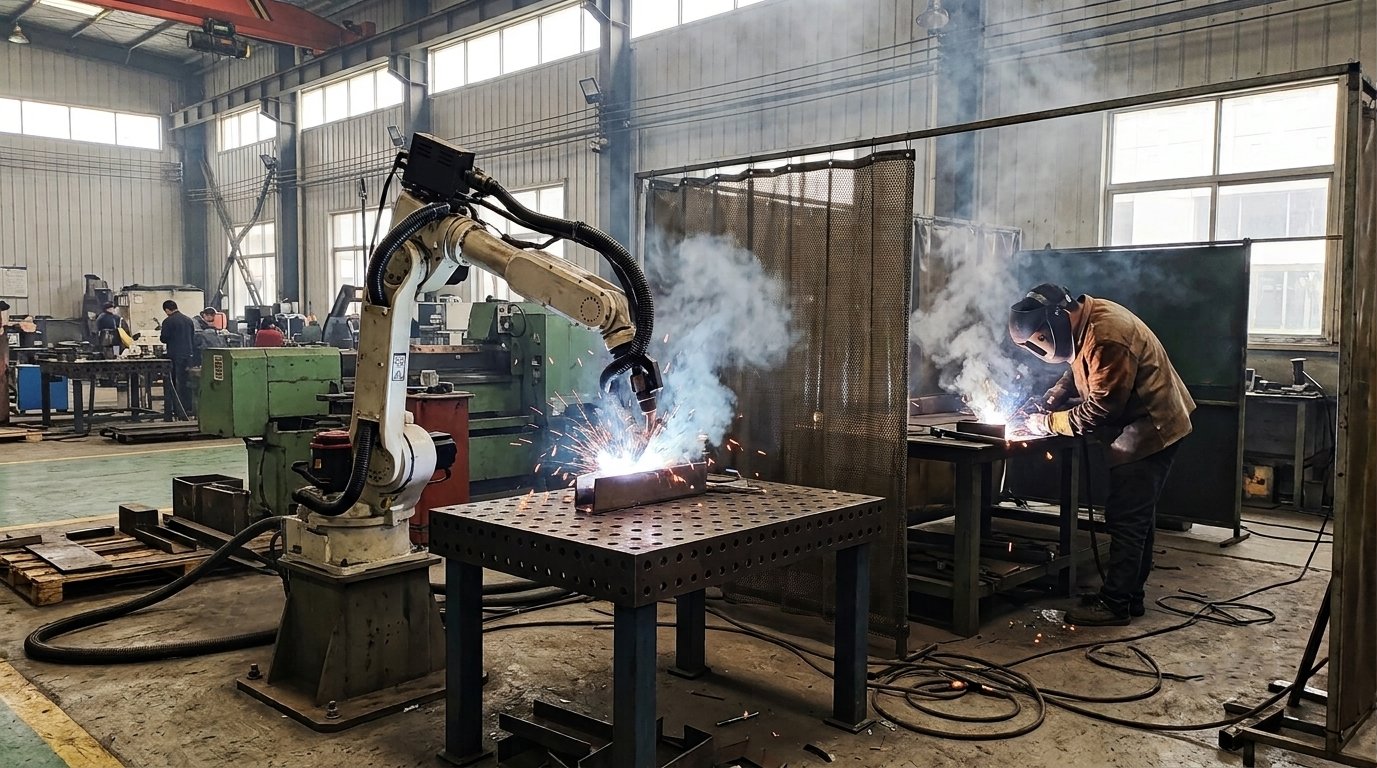

(Before Fume Control)

The Dual-Engine Solution: Engineering the Ideal Setup

[Hybrid Welding Department]
       │
       ├──► COBOT Station ──► Integrated Robotic Welding Extraction System (High Continuous Volume)
       │
       └──► Manual Station ──► Source-Capture Mobile Fume Extractor (High Flexibility)

1. For the Automation Footprint: Robotic welding extraction system

Because a COBOT lacks spatial awareness, the source-capture mechanism must be structurally integrated or tightly synchronized with its movement. A dedicated Robotic welding extraction system utilizes high-vacuum, low-volume technology directly attached to the torch head, or a localized, automated extraction hood positioned precisely over the fixture.

*Technical Insight: If the COBOT handles long, continuous seams, an integrated extraction torch (on-torch extraction) is ideal. It captures up to 95% of fumes directly at the arc, regardless of where the robot moves, ensuring that the thermal plume never has the chance to disperse into the shared breathing zone.

2. For the Artisan Footprint: Mobile fume extractor

Conversely, the human welder needs agile protection that adapts to variable tasks. This is where a heavy-duty mobile fume extractor becomes indispensable. Equipped with a highly positional, counterbalanced extraction arm, it allows the welder to effortlessly position the hood within 12 inches of the arc.

But mobility is nothing without industrial-grade filtration. To handle the heavy loading of a combined department, these mobile units should feature surface-loading, nanotech MERV 15+ cartridge filters with built-in, compressed-air pulse cleaning systems. This ensures consistent static pressure and long filter life, preventing the unit from becoming a maintenance bottleneck.

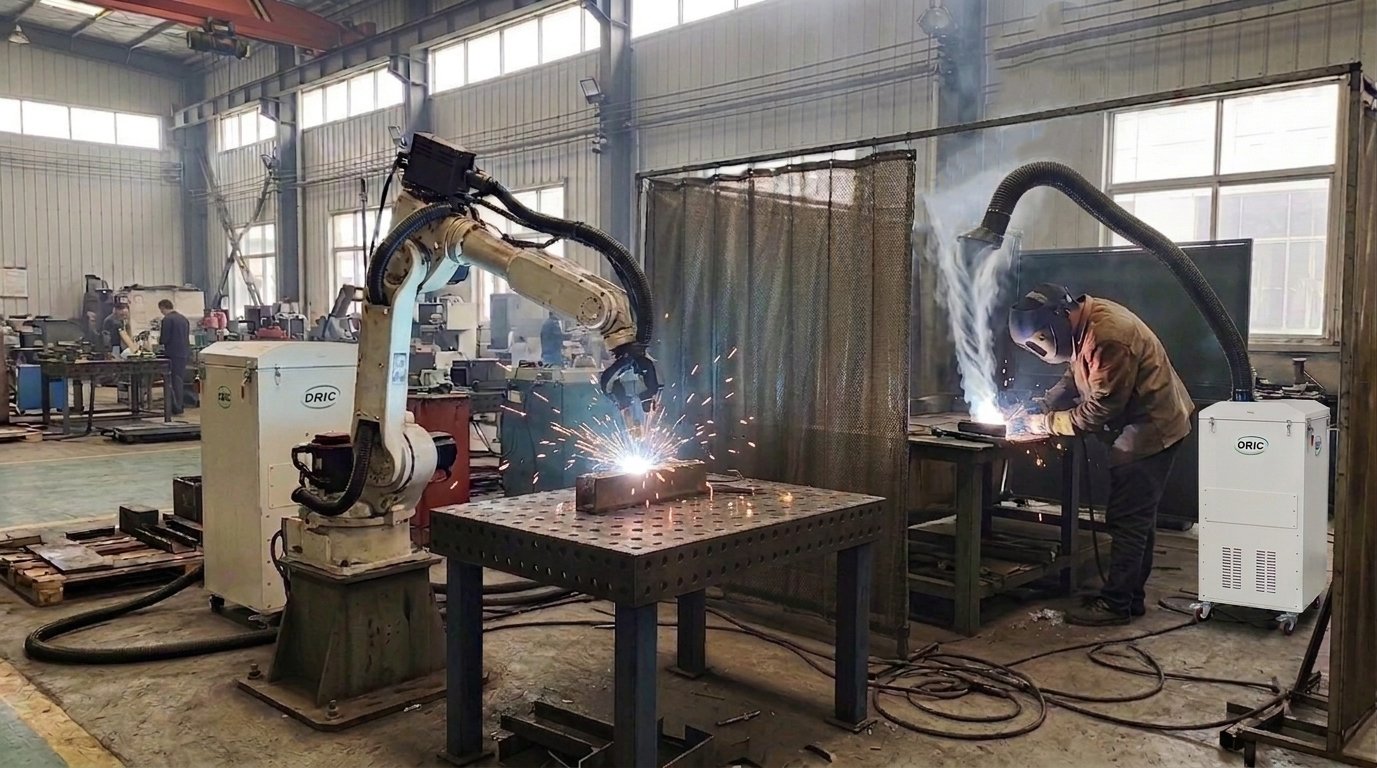

(After Fume Control)

Technical Selection Matrix for Hybrid Departments

Actionable Strategy: Future-Proofing Your Factory Floor

If you are currently managing a mixed manual and automated welding department, relying on building ventilation alone is an operational liability that risks OSHA citations, worker absenteeism, and premature equipment failure due to settled dust.

To transition your facility into a clean, compliant, and high-efficiency environment, consider the following blueprint:

1. Audit the Duty Cycles: Quantify the arc-on time for both your COBOT and manual stations to calculate the total daily particulate mass generated.

2. Deploy Point-of-Source Capture: Isolate the COBOT's continuous output with an automated extraction system, ensuring the smoke is neutralized before it drifts.

3. Empower the Workforce: Equip your manual welders with high-mobility extraction units, training them on the importance of correct hood placement.

Ready to optimize your hybrid welding department's air quality? Contact our application engineers today for a customized site assessment and a tailored fume extraction blueprint.
