Designing the Ultimate Robotic Welding Extraction System

To safeguard both workforce health and sensitive robotic electronics, implementing a robust robotic welding extraction system is an operational necessity. When engineering a factory-wide clean air strategy, plant managers must recognize that there is no single, universal solution for welding fume mitigation. An off-the-shelf extraction unit cannot account for the vast differences in part geometries, material handling logistics, and cycle times. The ultimate efficacy of your automated welding fume control relies entirely on matching the extraction architecture to the specific physical layout of your robotic workstations.

Below, we analyze three distinct manufacturing scenarios, evaluating their hidden thermal dynamics and detailing the precise filtration countermeasures required.

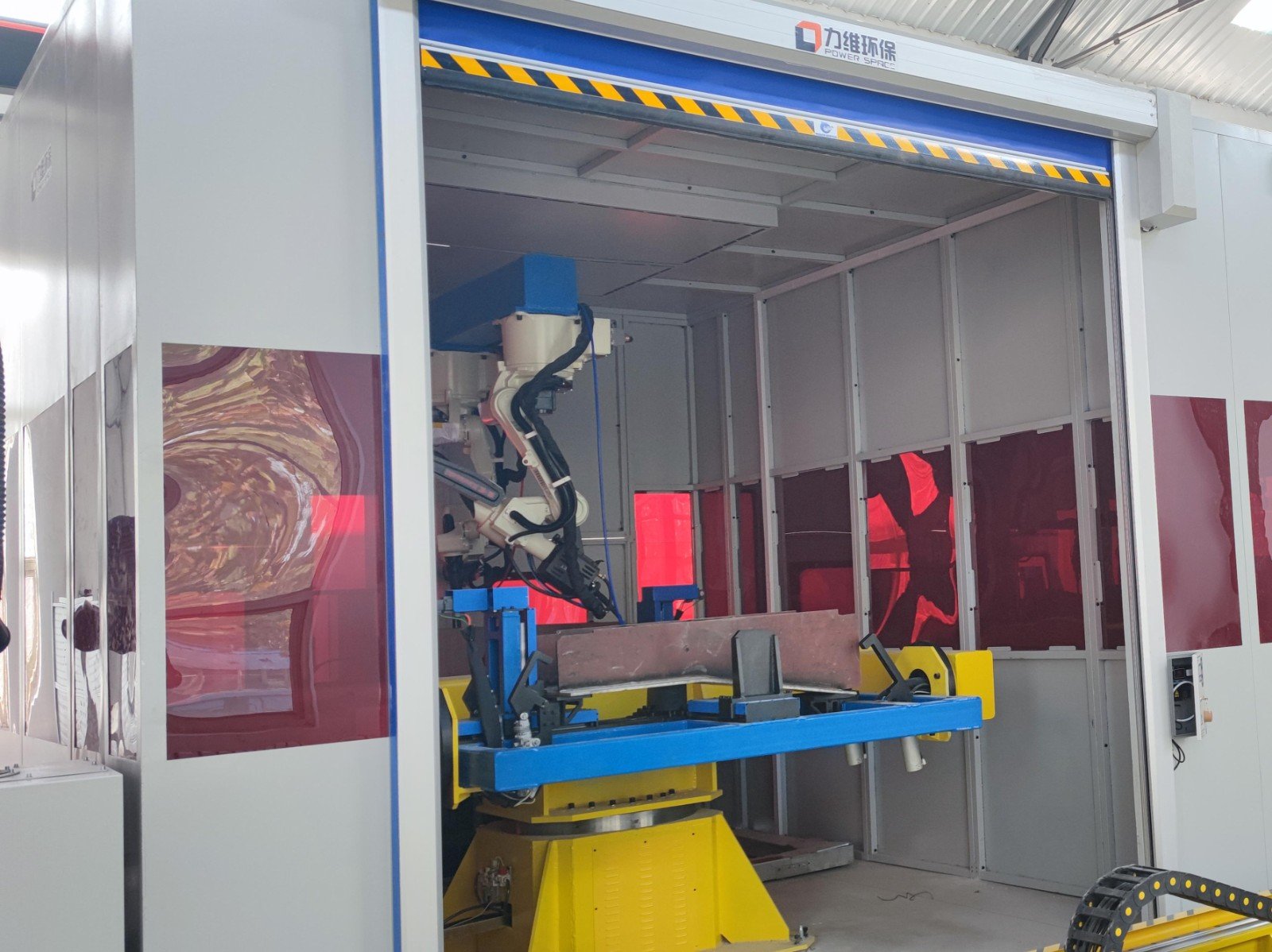

1. Welding Robot in Closed Welding Cell

• Typical Applications: Automotive components manufacturing, small-to-medium structural bracket assembly lines, and fixed-station repetitive fabrication.

• Logistical Traits: Parts are uniform, cycle times are highly predictable, and material handling is fully integrated via indexing tables or small automated guided vehicles, requiring no overhead crane intervention.

The Filtration Countermeasure: Fully Enclosed Welding Cell

For footprints where the robotic arm and positioner occupy a fixed, compact area, the most reliable approach is a total containment strategy.

This configuration functions like a sealed isolation chamber, completely enveloping the automation assets. As the robotic torch strikes the arc, the thermal plume expands within the rigid cabin walls. Rather than allowing the smoke to migrate, a high-volume industrial dust collector continuously draws air from the upper plenum, maintaining a strict negative pressure gradient.

While this setup provides the highest ambient protection efficiency (frequently exceeding 95% containment), it demands a highly disciplined automation flow. Because the structure is rigid and permanent, it presents a hard barrier to overhead cranes. Therefore, this layout is strictly reserved for facilities where parts can seamlessly enter and exit via lateral conveyor gates or rotary turn-tables.

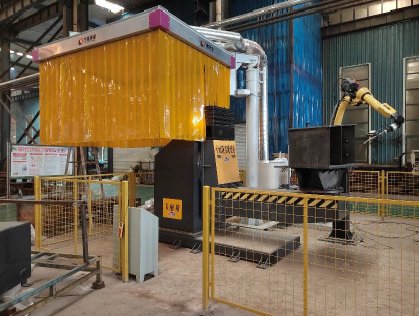

2. Welding Robot with Fume Extraction Hood

• Typical Applications: Medium-duty agricultural machinery frames, multi-station positioner combinations, and customized structural assemblies.

• Logistical Traits: Workpieces exhibit varying geometries, requiring occasional vertical loading via overhead bridge cranes, or manual material-handling intervention for part setups.

The Filtration Countermeasure: Welding Fume Extraction Hood

When vertical logistics prevent a permanent hard roof, facilities must pivot to a hybrid solution that balances flexibility with containment. This layout utilizes a heavy-duty modular extraction hood suspended directly above the robot’s maximum reach envelope. To combat the cross-drafts common in large industrial bays, anti-arc PVC strip curtains or automated motorized roll-up doors are dropped along the perimeter.

This layout leverages the natural laws of thermal buoyancy: the superheated welding smoke rises vertically directly into the low-vacuum overhead hood. When a new batch of raw materials arrives, or when the robotic arm requires maintenance, operators simply retract the flexible curtains, opening up unobstructed clearance for overhead crane chains.

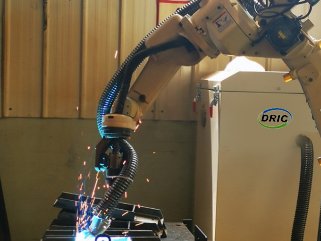

3. Welding Robot with On-Torch Fume Extractor

• Typical Applications: Ship section construction, heavy earthmover booms, long-span structural steel girders, and legacy facilities with restricted overhead clearances.

• Logistical Traits: The robotic system is mounted on a long gantry or linear travel rail, moving across massive workpieces where traditional enclosures or massive duct networks are structurally impossible or cost-prohibitive.

The Filtration Countermeasure: On-Torch Source Capture Systems

In heavy-duty fabrication environments, attempting to capture smoke after it travels three meters into the air is an expensive exercise in futility. The open nature of these lines demands an uncompromised source capture methodology. Here, the extraction kit is retrofitted directly onto the robotic torch neck, paired with a compact, high-vacuum low-volume (HVLV) extraction unit that travels alongside the robot's seventh axis.

The on-torch kit features a specialized extraction shroud positioned exactly 15 to 25 millimeters behind the gas nozzle. This spatial offset is critical: it places the vacuum inlet entirely outside the low-velocity shielding gas layer, catching the particulate envelope the exact millisecond it expands away from the arc.

Because the extraction point is dynamically linked to the torch, it provides continuous, real-time extraction along infinite-travel axes without requiring a single meter of overhead ducting. Plant logistics remain 100% unimpeded—cranes can move overhead without restriction, and the open-floor plan remains clean, flexible, and completely adaptable to changing production demands.

Technical Comparison

To assist factory planners in selecting the appropriate infrastructure, the table below contrasts the mechanical and financial performance metrics of each architecture:

Recommended Robot Extraction

Selecting a robotic welding extraction system involves balancing airflow physics against plant logistics. While large hood enclosures are effective for standard parts, they can introduce high energy costs and rigid space constraints. For factories focusing on lean production and heavy-duty fabrication, on-torch source capture provides a highly efficient, targeted alternative.

If you are looking to optimize your workshop ventilation layout, eliminate ambient haze, or resolve weld quality issues related to improper extraction velocity, our application engineering team can help you.  Contact us today to get recommended robot extraction!
