Foundational Selection: Matching Your Laser Cutter
The first step in dust collector design is to analyze the source of the fumes: the laser cutting machine itself. The machine's physical structure and power output are the primary factors that dictate the type and size of the required extraction system.
Machine Structure & Hood Design
The physical configuration of your laser cutter is the most critical factor in determining the fume capture method.

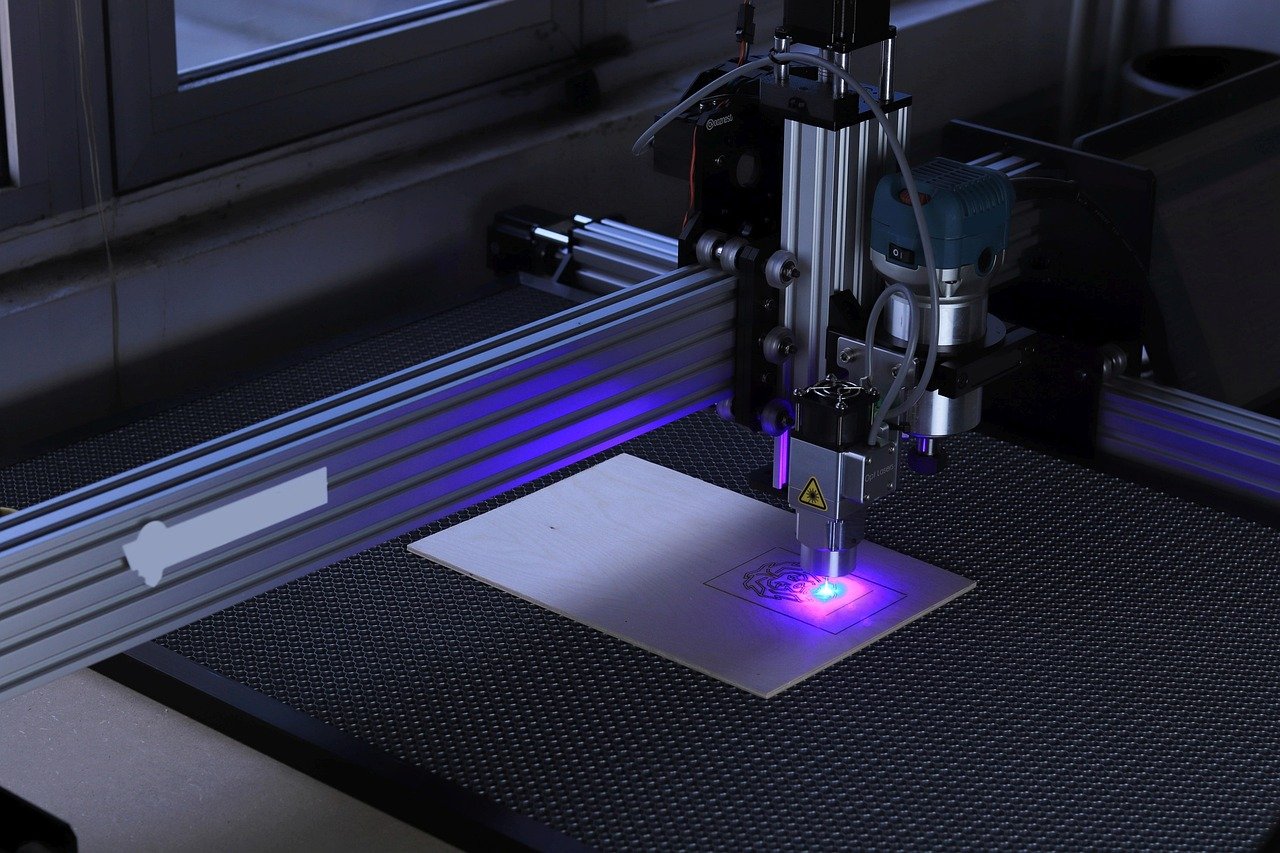

Open-Bed Laser Cutters: These machines, often used for large plates, require an integrated downdraft table.
The table is zoned into sections, and dampers open only in the area directly beneath the cutting head, concentrating suction where it's needed most. This design is complex but highly effective for capturing fumes at the source.
-LW1204: capturing fumes at the source-

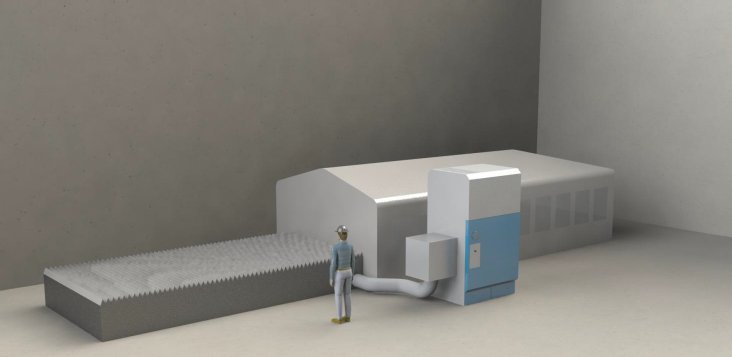

Enclosed Laser Cutters: Fully enclosed machines simplify extraction. Fumes are contained within the cabinet, allowing for effective removal through one or more exhaust ports. The key is to ensure the dust collector's airflow is sufficient to create negative pressure within the enclosure, preventing any fumes from escaping when doors are opened.
-Laser dust collection for enclosed laser cutter machine-

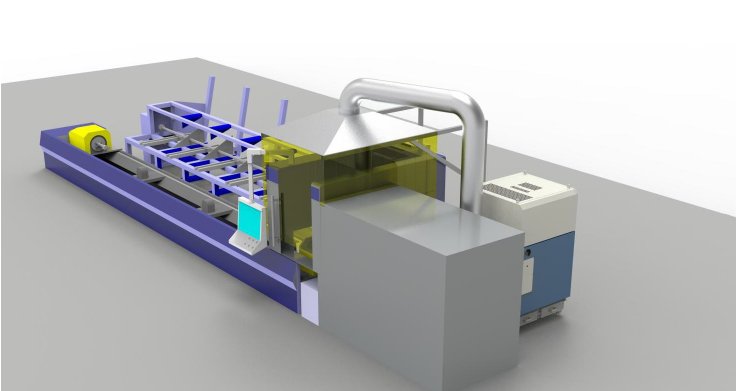

Tube Laser Cutters: Tube and profile cutters require a specialized approach. Extraction must be applied both internally (to remove dross and fumes from inside the tube) and externally (to capture fumes generated at the cutting point). This often involves a dual-port system or a custom-designed hood.
-Laser dust collection for tube laser cutter machine-
Laser Power & Collector Sizing
The power of your laser resonator (e.g., 3kW, 6kW, 12kW+) is directly proportional to the volume of fumes it can generate. Higher power allows for faster cutting speeds and the processing of thicker materials, both of which increase the rate of material vaporization. A simple rule of thumb is: higher laser power requires a higher capacity dust collector with greater airflow (measured in Cubic Feet per Minute or CFM) to handle the increased fume load. Sizing must account for the maximum potential output to avoid overwhelming the system.
How Cutting Affects Fume Generation
Beyond the machine itself, the specific cutting process—including the assist gas and the material being cut—dramatically alters the characteristics of the fume and dust generated.
The Impact of Assist Gases
The assist gas used in the cutting process influences the chemical composition and physical properties of the fume particles.
Oxygen (O₂): Used primarily for cutting carbon steel, oxygen creates an exothermic reaction that results in a larger, oxidized, and less dense fume particle. This fume is generally easier to capture and filter.
Nitrogen (N₂): Used for stainless steel and aluminum, nitrogen acts as an inert shield gas. It produces a much finer, denser particulate that can contain hazardous compounds like hexavalent chromium (from stainless steel). This requires higher efficiency filtration.
Air: A mixture of nitrogen and oxygen, compressed air is a cost-effective option for cutting thin materials.
The fume characteristics are a hybrid of those produced by oxygen and nitrogen.
The Impact of Materials
The material being processed is the single most important factor in determining safety requirements.
Carbon Steel: Produces a relatively large volume of iron oxide dust, which is non-combustible but requires a system with robust airflow.
Stainless Steel: The primary hazard is the release of hexavalent chromium, a known carcinogen. High-efficiency filtration (MERV 15 or higher) is mandatory to capture these fine, toxic particles.
Aluminum & Other Combustible Metals: When cutting materials like aluminum, titanium, or magnesium, the resulting fine dust can be highly combustible.
In these applications, an explosion proof dust collector is not optional—it is a critical safety requirement. These systems include features like explosion vents, isolation valves, and intrinsically safe components to mitigate the risk of a deflagration.
System Design & Optimization
With the machine and process variables defined, the next step is to engineer the extraction system itself, from the capture hood to the ductwork and the collector's core performance specifications.
Hoods & Nozzles for Specific Applications
While many systems use integrated downdraft tables or simple cabinet ports, some applications benefit from specialized hoods, including follow-along nozzles that track with the cutting head to provide highly concentrated, localized extraction.
Ductwork Design Principles
Proper ductwork design is crucial for performance. Using smooth, rigid metal ducting is strongly preferred over flexible ducts, as it creates far less resistance to airflow.
Is More CFM Always Better?
A common mistake in fume extractor selection is focusing solely on the maximum CFM rating. The critical relationship is between Airflow (CFM) and Static Pressure.
Airflow (CFM): This is the volume of air the system can move.
It’s what clears the smoke from the work area. Static Pressure (SP): This is the force or "suction" the fan can generate to pull air through resistance. This resistance comes from the hood, the ductwork, and most significantly, the filter media.
A system with high CFM but low static pressure will be ineffective if it cannot overcome the resistance of the filter and ductwork. Conversely, a high-pressure system with low airflow won't move enough air volume to clear the fumes. The goal is to select a dust collector that provides the required CFM at the calculated static pressure of your specific system.
Operations & Maintenance
The final piece of the puzzle is the long-term operation and maintenance of the system to ensure it continues to perform as designed.
Service & Support
Partner with a supplier who offers professional installation, on-site operator training, and a comprehensive warranty. An improperly installed system will never perform to spec, making expert setup a crucial first step.
Monitoring & Cleaning
Proactive filter cartridge maintenance is essential for performance and longevity.

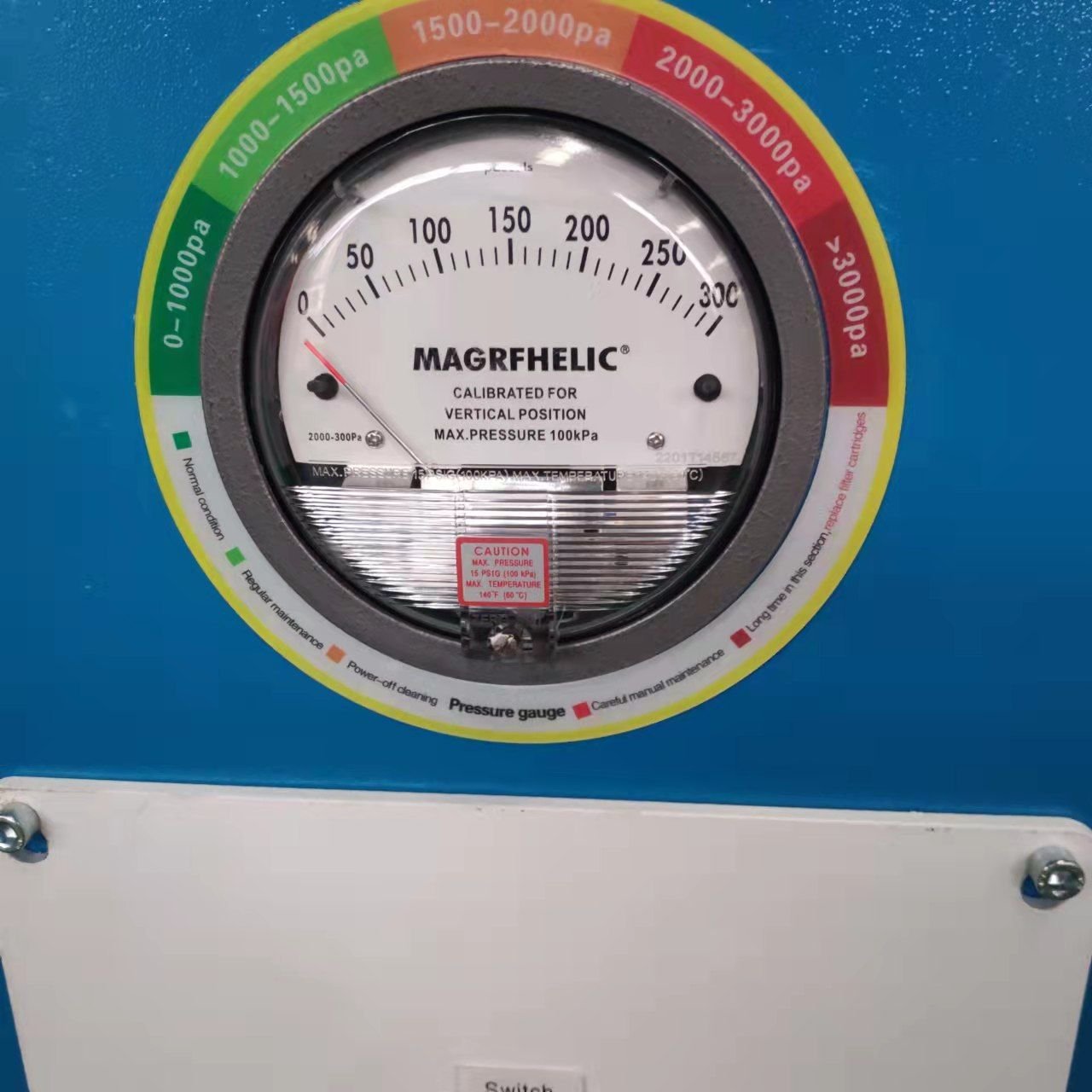

Differential Pressure Gauge: This is the most important tool for monitoring filter life. It measures the pressure drop across the filter cartridge. A low reading indicates a clean filter, while a high reading signals that the filter is clogged with dust and requires cleaning or replacement.
Pulse Cleaning: Most industrial collectors use an automatic pulse-jet system to clean the filters.

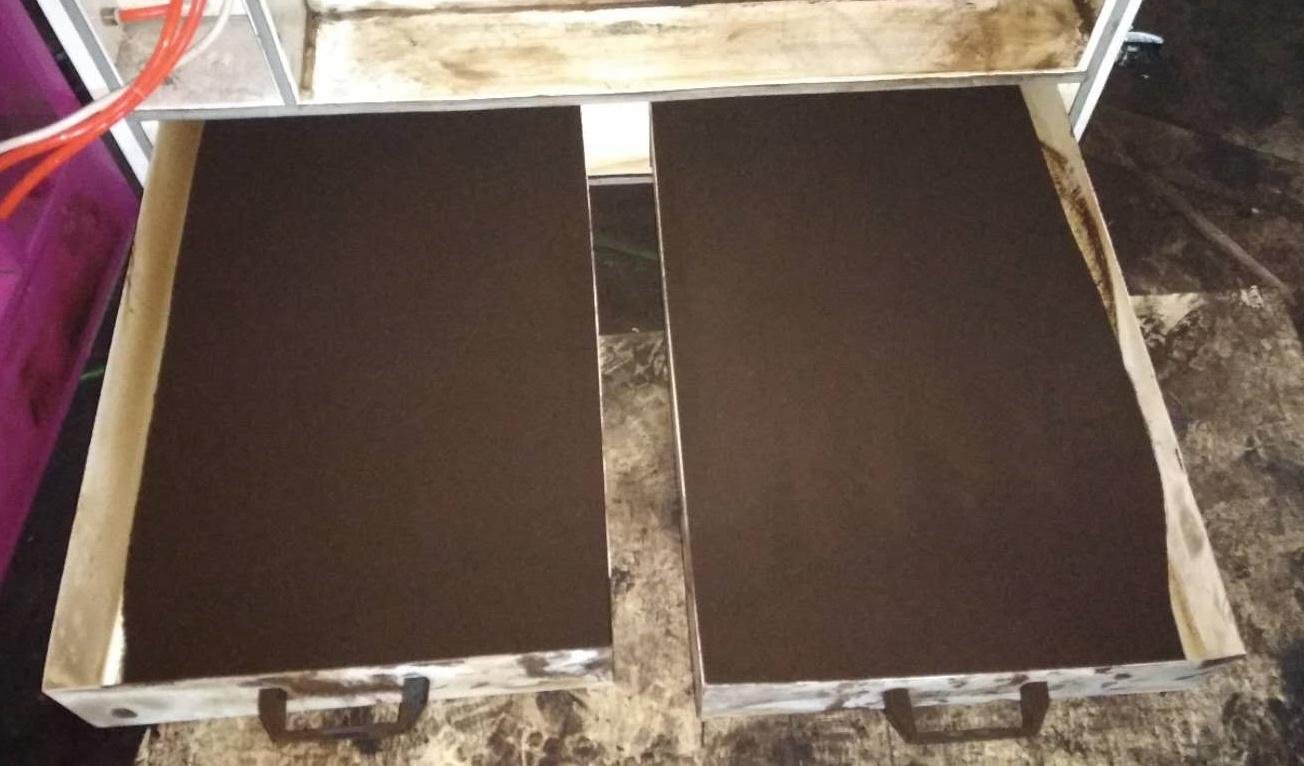

This system uses bursts of compressed air to dislodge caked-on dust, which then falls into a collection drawer. Dust Drawer: The dust collection drawer or bin must be emptied regularly. Allowing it to overfill can impede system performance and create a safety hazard, especially when dealing with combustible dust.
